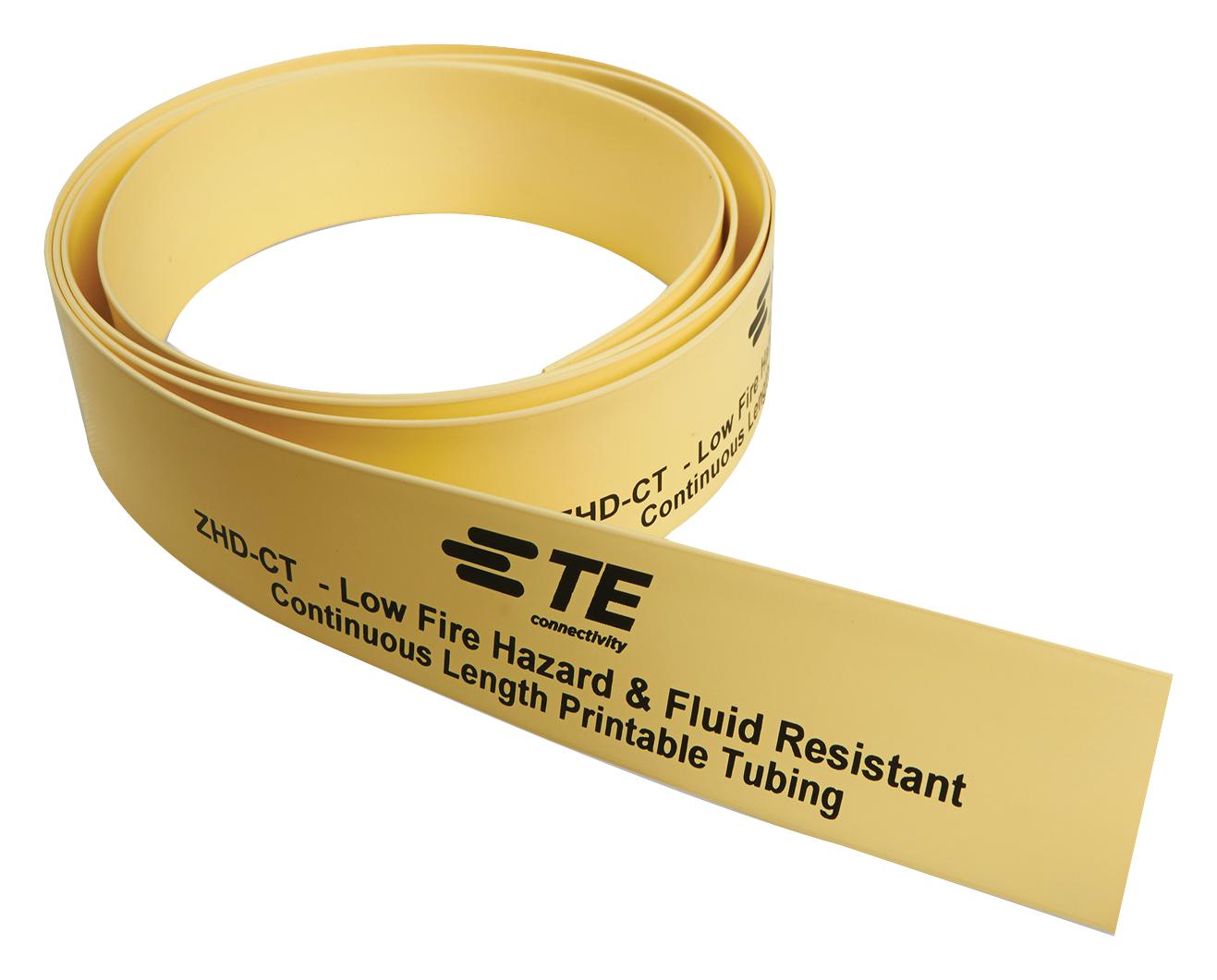

Raychem TE Connectivity ZHDCT50M32OUT4 Heat Shrink Wire Marker
The ZHD-CT series is a heat-shrinkable wire marker designed for demanding installation environments, offering high performance without compromising safety or capability. It is a blend of D-CT and HX-CT series, featuring zero halogen material, diesel resistance, and low toxic fumes and smoke. The material is self-extinguishing and non-flame propagating, resistant to key rail and industrial fluids as specified by TE standard RW-2536. It has a 2:1 shrink ratio and comes on a spool length of 50 meters (164 feet). Operating temperature ranges from -55°C to +125°C.
Raychem TE Connectivity ZHDCT50M32OUT4 Heat Shrink Wire Marker Specifications:
- Heat shrink ratio: 2:1
- Spool length: 50 meters (164 feet)
- Inside diameter options: 2.4mm, 3.2mm, 4.8mm, 6.4mm, 9.5mm, 12.7mm, 19.0mm, 25.4mm, 38.1mm
- Maximum spool diameter varies with size, up to 38.1mm
- Temperature Rating: -55°C to 125°C (-67°F to 257°F)
- Material: Zero halogen, radiation cross-linked, resistant to fuels and industrial fluids
- Flammability: Self-extinguishing, non-flame propagating
- Compliance: EN45545-2 Fire Hazard Classification 1 and 2, BS 6853, EN 50343, NFPA 130, DOT/ FRA
- Resistant to key rail and industrial fluids as per TE specification RW-2536
- Colors: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Gray, Black
- Suitable for cable diameters from approximately 1.27mm to 33mm depending on size
Buy the Buy TE Connectivity ZHD-CT Part Number ZHDCT50M32OUT4 Online
Order the TE Connectivity heat shrink wire marker ZHD-CT now and secure the highest levels of safety, durability, and performance for demanding cable identification tasks. Designed with zero halogen and diesel-resistant properties, it ensures excellent flame retardancy and resistance to industrial fluids, making it ideal for rail and industrial environments. Available in various sizes and colors, this reliable identification system simplifies installation and maintenance while adhering to strict safety standards. Purchase online today for swift delivery and professional-grade cable management.
Buy TE Connectivity ZHD-CT 50 meters spool now and experience unmatched reliability and high-performance cable identification with robust, flame-retardant features.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ZHDCT50M32OUT4?
You can click on the BUY or RFQ button to purchase ZHDCT50M32OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ZHDCT50M32OUT4?
You can download the ZHDCT50M32OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ZHDCT50M32OUT4?
Raychem TE Connectivity
