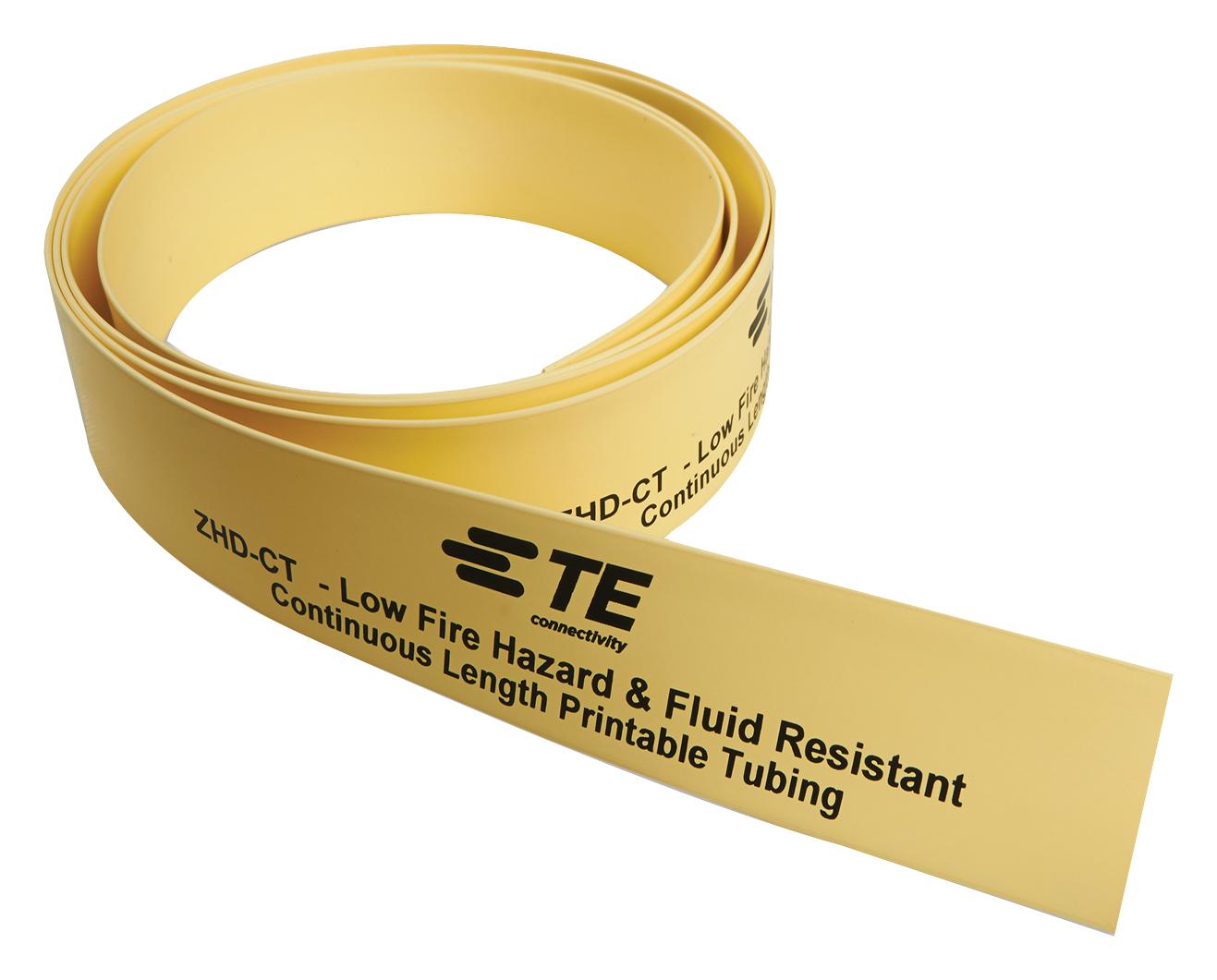

Raychem TE Connectivity ZHDCT50M48OUT4 Heat Shrink Wire Marker
The ZHD-CT series is a heat shrinkable wire marker designed to provide reliable identification solutions in demanding installation environments. It is a blend of D-CT and HX-CT series, offering features such as zero halogen composition, diesel resistance, and low toxic fumes with low smoke emission. This wire marker is self-extinguishing and non-flame propagating, ensuring safety during use. It is resistant to key rail and industrial fluids as specified by TE standard RW-2536. The marker has a 2:1 shrink ratio and comes on a 50-meter (160-foot) spool. It operates within a temperature range from -55°C to +125°C, making it suitable for a wide range of applications.
Raychem TE Connectivity ZHDCT50M48OUT4 Heat Shrink Wire Marker Specifications:
- Shrink ratio 2:1
- Spool Length: 50 meters
- Expanded Inside Diameter: 4.8 mm
- Standard Colors: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Operating Temperature Range: -55°C to +125°C
- Resistant to key rail and industrial fluids per TE standard RW-2536
- Flammability: Self-extinguishing, non-flame propagating (REACH)
- Compliance: EN45545-2 Fire Hazard Classification 1 and 2, BS 6853 Vehicle Category 1a, EN 50343, NFPA 130
- Material: Radiation cross-linked, zero halogen, diesel resistant
- Application: Cable identification for railway and industrial wiring
- Certification: Conforms to multiple rail standards for fire and flammability
- Printer Compatibility: Recommended with TE printers and ribbons as per TE document 411-121005
- Software: WINTOTAL for designing and printing
- Resistance: MIL 202J Method 215K, Resistance to Solvents, adherence to marking standards
Buy the TE Connectivity Series ZHD-CT Zero Halogen Diesel Resistant Heat Shrink: ZHDCT50M48OUT4
Elevate your wiring identification with TE Connectivity's ZHD-CT heat shrink markers. Engineered for reliability, these zero halogen, diesel-resistant sleeves ensure safe, durable cable management in industrial and railway applications. Available in multiple colors and sizes, they come on 50-meter spools and withstand temperatures from -55°C to +125°C. Compatible with recommended TE printers and ribbons, these markers conform to strict rail standards for fire hazard classification, ensuring safety and compliance in critical installations. Purchase online today for high-performance wiring solutions.
Buy TE Connectivity ZHDCT50M48OUT4 now and experience unmatched reliability and performance in wire identification for demanding environments.
