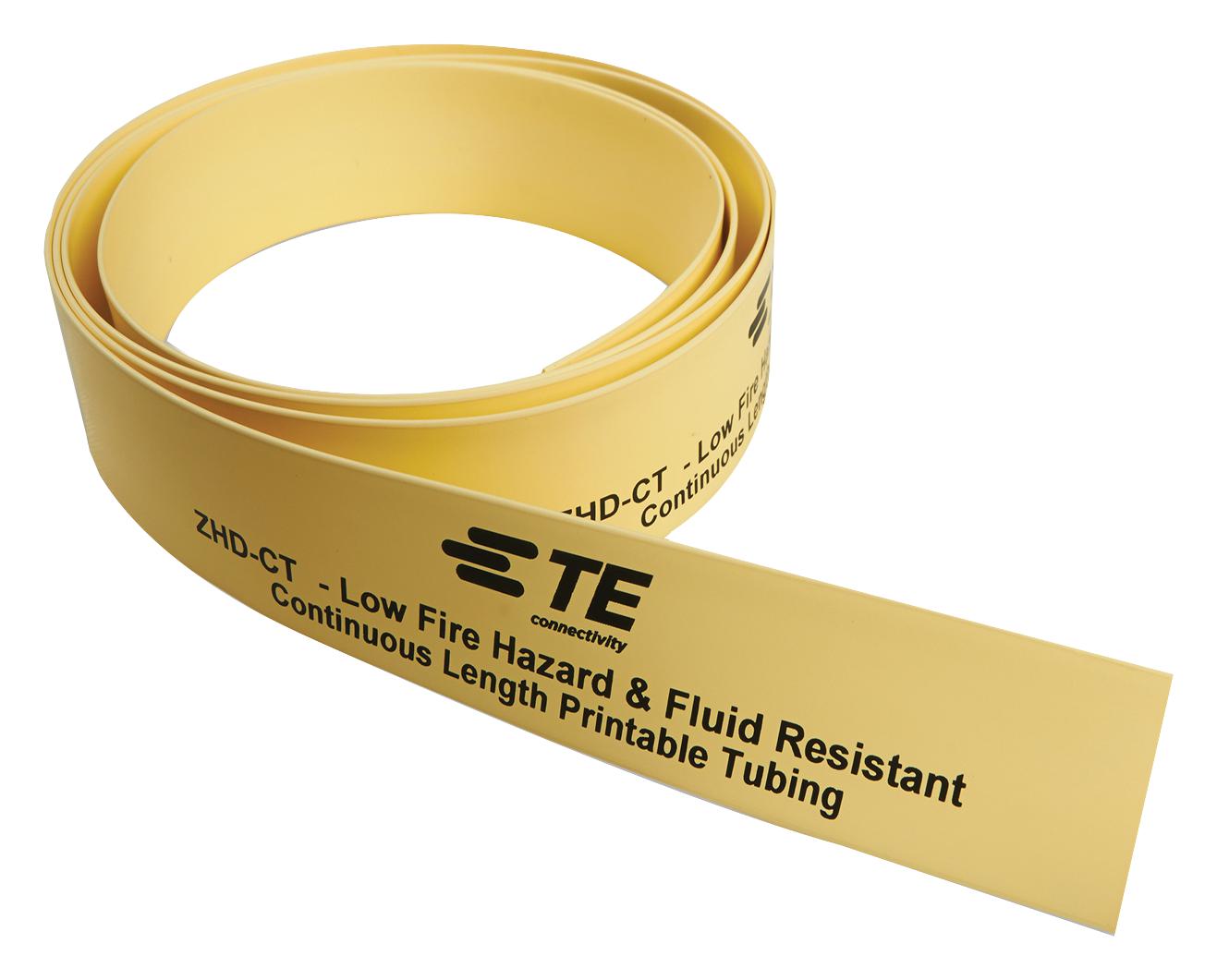

Raychem TE Connectivity ZHDCT50M64OUT4 Wire Marker
The ZHD-CT series is a heat shrinkable wire marker designed for high-performance installations, ensuring safety and capability. It is a blend of D-CT and HX-CT, made to be both zero halogen and diesel resistant. The marker offers zero halogen, low toxic fumes, and low smoke emissions. It is self-extinguishing and does not propagate flames. Resistant to key rail and industrial fluids as specified by TE standard RW-2536. Features a 2:1 shrink ratio with a spool length of 50 meters (164 feet). Operating temperature ranges from -55°C to +125°C.
Raychem TE Connectivity ZHDCT50M64OUT4 Wire Marker Specifications:
- Shrink Ratio: 2:1
- Spool Length: 50 meters (164 feet)
- Expanded Inside Diameter: 4.8 mm (0.189 inches)
- Operating Temperature Range: -55°C to +125°C
- Material: Radiation cross-linked, zero halogen, diesel resistant
- Resistant to rail and industrial fluids per TE standard RW-2536
- Fire Hazard Classification: EN45545-2 Classes 1 and 2
- Flammability: Self-extinguishing, non-flame propagating (REACH)
- Maximum Application Temperature: 125°C (257°F)
Buy the Buy TE Connectivity ZHD-CT Part Number ZHDCT50M64OUT4 Online
Experience the reliability of TE Connectivity's ZHD-CT heat shrink wire markers, offering zero halogen and diesel resistance. Perfect for rail and industrial applications, these markers provide excellent shrink performance with a 2:1 ratio. The 50-meter spool accommodates various cable diameters from 2.4mm to 38.1mm. They meet strict safety standards including EN45545-2 and UL fire classifications, ensuring safety and compliance. Easy to use with specific printers and ribbons, these markers are ideal for durable, high-performance wire branding in complex systems.
Get TE Connectivity ZHD-CT Part Number ZHDCT50M64OUT4 today—designed for high-performance, safety, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ZHDCT50M64OUT4?
You can click on the BUY or RFQ button to purchase ZHDCT50M64OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ZHDCT50M64OUT4?
You can download the ZHDCT50M64OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ZHDCT50M64OUT4?
Raychem TE Connectivity
