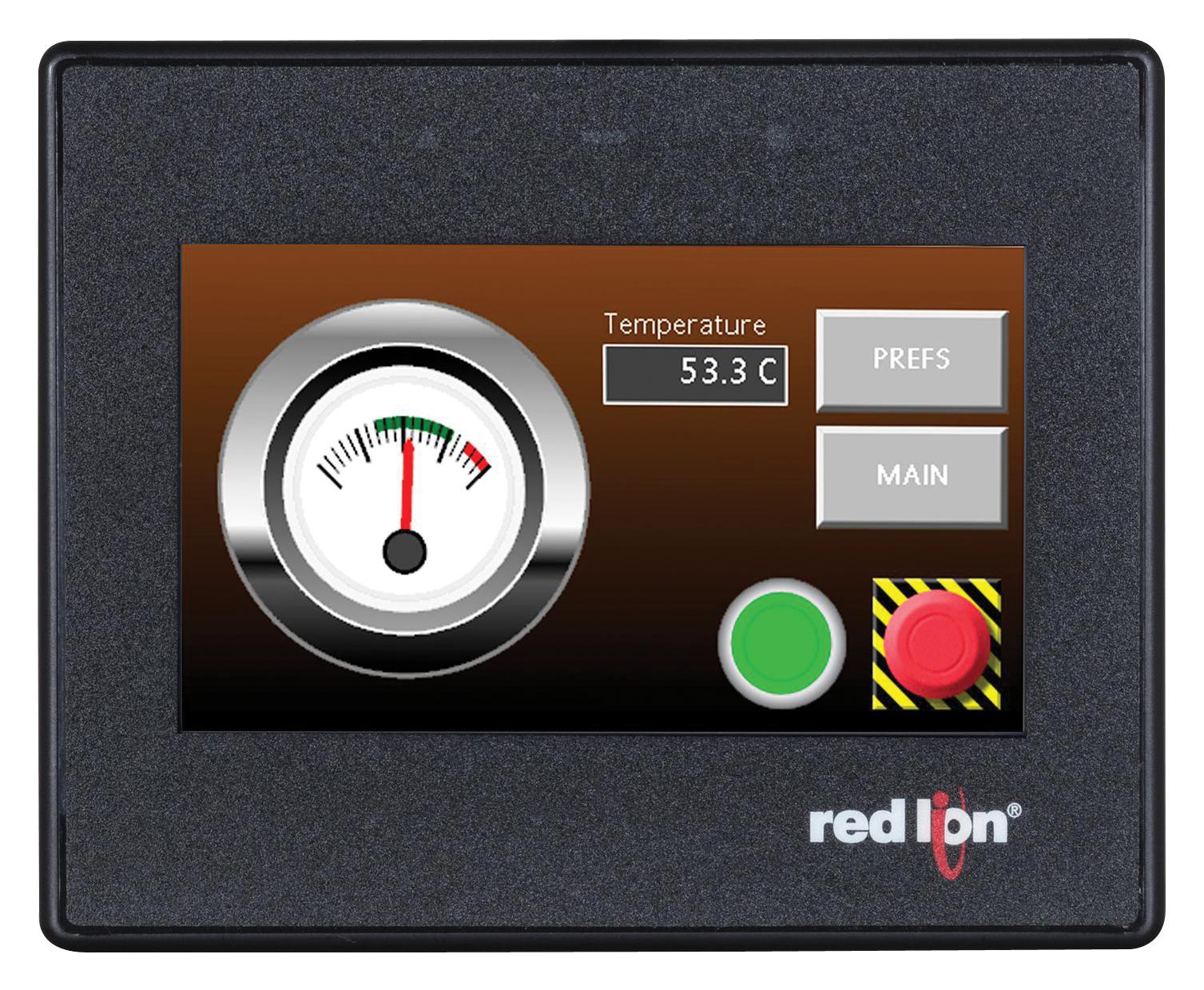

Red Lion Controls CR10000400000210 Operator Panel
The CR1000 and CR3000 HMIs are advanced operator interface panels designed for industrial environments, featuring colorful touchscreens, extensive protocol conversion capabilities, and web server access. They support over 300 protocols, real-time data logging, and easy configuration via Crimson 3.1 software. Built with a durable NEMA 4X/IP66 polycarbonate enclosure, the HMIs operate in harsh conditions with high shock, vibration, and temperature resilience. Available in multiple sizes from 4.3
Red Lion Controls CR10000400000210 Operator Panel Specifications:
- Touchscreen Display: Color TFT LCD with resistive or capacitive technology, size varies from 4.3" to 15"
- Display Resolution: 480 x 272, 800 x 480, 800 x 600, 1024 x 768 pixels (model-dependent)
- Colors: 16M colors
- Enclosure Material: Polycarbonate NEMA 4X/IP66 rating for durability in harsh environments
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -20°C to 70°C
- Humidity: 0 to 85% non-condensing
- Shock Resistance: 30 g for IEC 68-2-27
- Vibration Resistance: 2 g @ 5-500 Hz per IEC 68-2-6
- Communication Ports: USB Type B (serial and host), Ethernet (10/100 BASE-TX), RS232, RS422/RS485
- USB Ports: 1 USB Device, 1-2 USB Host (model-dependent)
- Power Input: 24 VDC ±20% (CR1000), 10-30 VDC (CR3000)
- Power Connection: Removable terminal block, wire gauge 12-24 AWG, torque 4.4-5.3 in-lbs
- Web Server: Built-in for remote access and control
- Data Logging: Supports real-time data logging, database upload/download via SD card
- Protocol Conversion: Over 300 protocols, up to 6 protocols on CR1000 and 15 on CR3000 simultaneously
- Size Compatibility: Models range from 4.3", 7", 10.4", to 15" widescreens, with mounting brackets and dimensions available
- Certifications: CE, UL, RoHS, Class I Division 2 (CR8000)
Buy the Red Lion CR1000 – Reliable Operator Interface Panels for Industrial Applications
Upgrade your industrial automation with the Red Lion operator panel series. These panels feature colorful touchscreens, extensive protocol support, and built-in web servers for remote management. Suitable for factory automation, water treatment, and automotive applications, they withstand harsh environments with NEMA 4X/IP66 ratings, high shock, vibration tolerance, and wide temperature ranges. Easy to configure with Crimson 3.1 software, they support real-time data logging, SD card database management, and email/SMS notifications. Get reliable, scalable control solutions online now to optimize your operations and reduce downtime.
Order your Red Lion CR1000 operator interface panel today and enhance your automation projects with dependable and scalable HMI solutions.
