Red Lion Controls LMPC0000 Magnetic Pickup Sensor

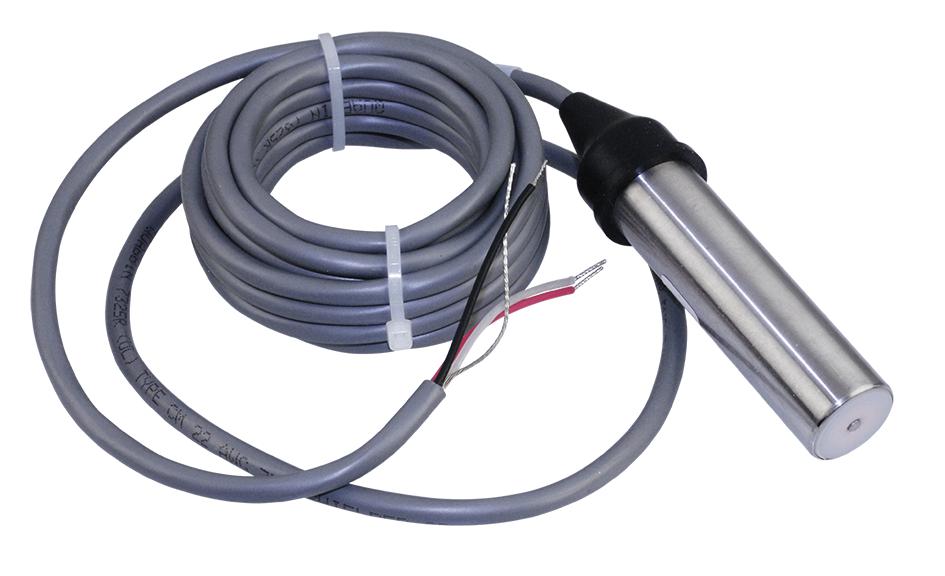

Red Lion Logic Magnetic Pickup Sensor is a highly sensitive device ideal for automation and industrial control applications. It detects ferrous targets and provides reliable switching signals, featuring built-in pulse shaping amplifiers for ultra-low-speed operation and large air gaps. Encapsulated in a stainless steel case with a plastic sensing face and mounted with a flush-mount sensing pole, this sensor is resistant to oil, dirt, and moisture. Available with NPN open collector or emitter-follower outputs, it operates from +9 to +30 VDC, with a frequency response up to 10 KHz and temperature range from -18°C to +60°C. Easy to install with optional mounting accessories.
Red Lion Controls LMPC0000 Magnetic Pickup Sensor Specifications:
- Supply Voltage: +9 to +30 VDC @ 25 mA max
- Output Types: NPN open collector and emitter-follower
- Open Collector Output: Voy = 30 VDC max., VDC max. 1 V@30 mA, limited to 40 mA
- Emitter-Follower Output: +5 V signal, sourcing 20 mA
- Operating Frequency: 10 KHz max
- Operating Temperature: -18°C to +60°C (0°F to +140°F)
- Sensor Diameter: 0.750 inch (19.05 mm)
- Construction: Epoxy encapsulated, stainless steel case, plastic sensing face
- Mounting Options: Block mount, plug mount in stainless steel or steel
- Detection Range: Large air gaps, suitable for slow surface speeds
- Connector Options: 3-wire cable (10, 25, 50 ft.) or 3-pin threaded connector
Buy the Red Lion LMPC0000 – Reliable Magnetic Pickup for Industrial Applications
Order the Red Lion Magnetic Pickup Sensor online now to ensure reliable ferrous target detection in your industrial automation projects. Engineered for durability with stainless steel casing and oil-resistant encapsulation, this sensor offers versatile mounting options, including block and plug mounts. It features high sensitivity, noise immunity, and a frequency response up to 10 KHz, operating efficiently from -18°C to +60°C. With various cable lengths and connector options, this sensor is easy to install and perfect for complex manufacturing environments. Purchase today to enhance your control system's reliability and precision.
Get Red Lion LMPC0000 today—built for precise detection and long-lasting durability in industrial automation setups.
