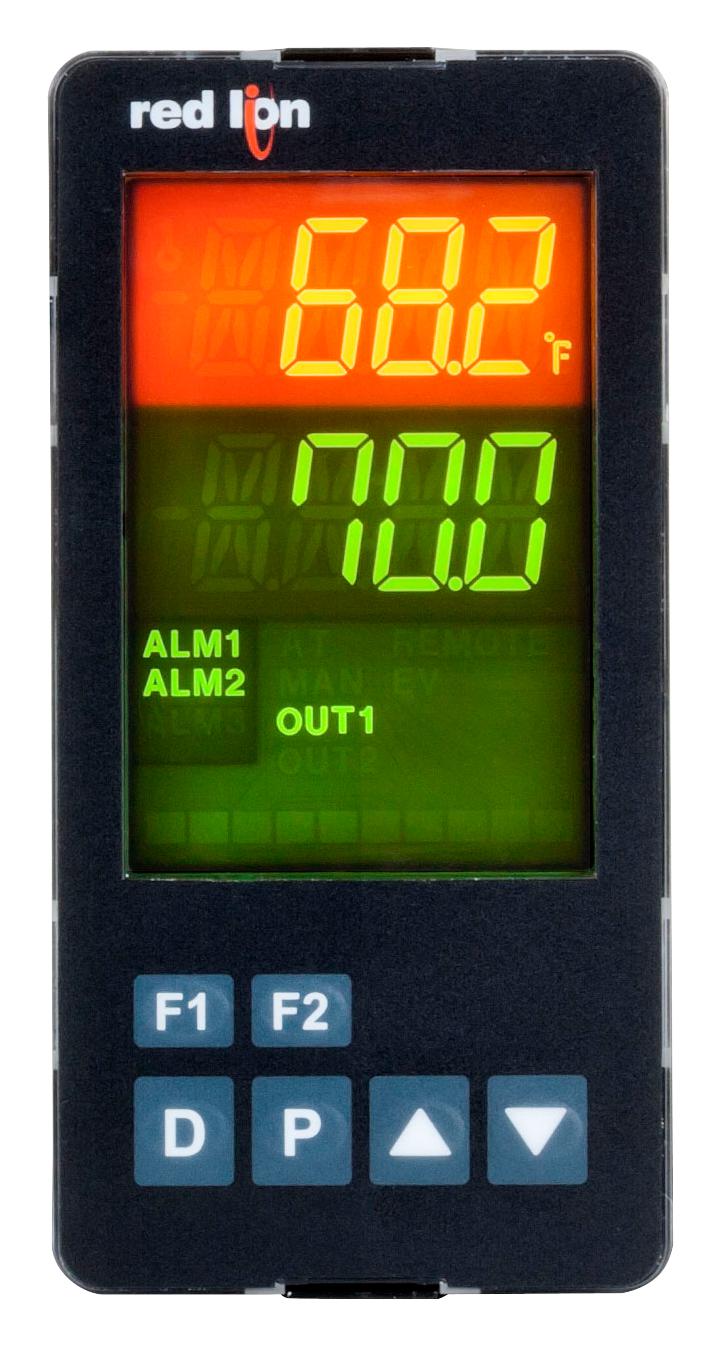

Red Lion Controls PXU11BC0 Process Control Device
The PXU series PID controllers are versatile industrial process control devices designed for precise temperature and process regulation across various applications such as food and beverage, automation, and manufacturing. They feature universal inputs including thermocouples, RTDs, 0-10 VDC, and 4-20 mA signals, with options for ramp/soak control, auto-tuning, dual control outputs, and easy programming via front panel or Crimson software. Enclosed in IP65-rated casings, these controllers support 1/16, 1/8, and 1/4 DIN sizes, making them suitable for demanding environments requiring reliable, accurate control and external communication.
Red Lion Controls PXU11BC0 Process Control Device Specifications:
- Display Properties: LCD negative image transmissive with backlighting, top process display with orange backlight, bottom parameter display with green backlight, 4 digits per line, digit size varies by DIN model
- Input Capabilities: Temperature/RTD, 0-5 VDC, 0-10 VDC, 4-20 mA, 0-50 mV, AC or DC powered
- Process Inputs: 0-5 or 0-10 VDC, 0-20 or 4-20 mA, 0-50 mV, optional current transducer included
- Dimensions: 1/16 DIN - 0.43 x 0.27 inches; 1/8 DIN - 0.47 x 0.47 inches; 1/4 DIN - 0.87 x 0.68 inches
- Environmental: Operating temperature 0 to 50°C, storage -20 to 65°C, humidity up to 80%, vibration resistance 10-85 Hz at 1 g, shock resistance 30 g
- Power: 100-240 VAC or 24 VDC, rated power consumption approximately 8 W
- Communication: Optional RS-485 serial via transmissive LCD, using Crimson software
- Certifications: UL Listed, CE approved, EN 61326-1 immunity, emission CISPR 11 Class A
- Mechanical: Black plastic alloy case, panel latch, IP65 face rating, designed for indoor use
Buy the Red Lion PXU11BC0 – Reliable PID Control for Industrial Applications
Purchase the Red Lion PXU11BC0 process control device online today to experience high-precision temperature and process regulation. This versatile PID controller offers universal inputs, auto-tuning, ramp/soak capabilities, dual outputs, and easy setup through front panel or Crimson software. Its durable IP65 enclosure ensures reliable operation in demanding environments, making it ideal for food processing, automation, plastics, and manufacturing. Built for industrial robustness, the PXU series enhances your process control with accurate, flexible, and easy-to-use features that improve efficiency and productivity.
Get Red Lion PXU11BC0 today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy Red Lion Controls PXU11BC0?
You can click on the BUY or RFQ button to purchase PXU11BC0 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part PXU11BC0?
You can download the PXU11BC0 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of PXU11BC0?
Red Lion Controls
