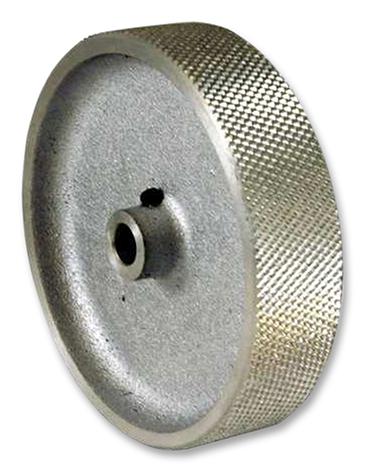

Red Lion Controls WF1000OK Industrial Length Sensor
The rugged rotary pulse generator and length sensor are designed for high-resolution shaft and web movement measurement in industrial environments. With options up to 200 PPR and output frequencies reaching 10 KHz, these sensors offer reliable, contactless operation even in dusty or dirty conditions. The models feature sealed precision bearings, rugged cast aluminum housing, and easy installation with flexible coupling options. Suitable for continuous operation up to 6000 RPM, they provide stable signal output for automation and control applications in manufacturing, packaging,, and textile industries.
Red Lion Controls WF1000OK Industrial Length Sensor Specifications:
- Output Type: NPN Open Collector Transistor
- Supply Voltage: +8 to +35 VDC
- Output Frequency: Up to 10 KHz
- Maximum Mechanical Speed: 6000 RPM
- Shaft Diameter: 3/8 inch (9.53 mm)
- Housing: Rugged cast aluminum with gasketed cover
- Bearings: Sealed, lifetime-lubricated precision ball bearings
- Shaft Load: Radial 15 lbs, Axial 15 lbs
- Starting Torque: 3.02 in.-oz. (21.2 N-mm)
- Operating Temperature: -18°C to +60°C
- Weight: RPGC 15.07 oz (0.42 kg), LSC models approx. 22 oz (0.62 kg)
- Cable: 10 ft (3 m) PVC jacketed, shielded wire with foil
- Accuracy factors include measuring wheel wear and material conditions
- Mounting: Can be rigidly face-mounted, coupled via flexible or belt drives.
- Environmental Rating: NEMA 13/IP54
- Pulse Rate Options: 10, 12, 60, 100, 120, 200 PPR
- Compatible with automation controllers and counters
- Designed for reliable, contactless measurement in various industrial conditions
Buy the Red Lion WF1000OK – Reliable Length Sensor for Industrial Applications
Order the Red Lion WF1000OK industrial length sensor online today to ensure precise, reliable measurements for your manufacturing processes. Designed for durability, this sensor offers high-resolution input with options up to 200 PPR and an output frequency up to 10 KHz. Its rugged aluminum housing, sealed bearings, and versatile mounting options make it ideal for harsh environments like dust, dirt, or moisture. Whether measuring web movement or shaft rotation, this sensor simplifies installation and provides consistent, accurate signals for automation systems, controllers, and indicators. Enhance your productivity today with quick online purchase and fast delivery.
Get Red Lion WF1000OK today—built for precision and long-lasting durability in industrial measurement and control tasks.
