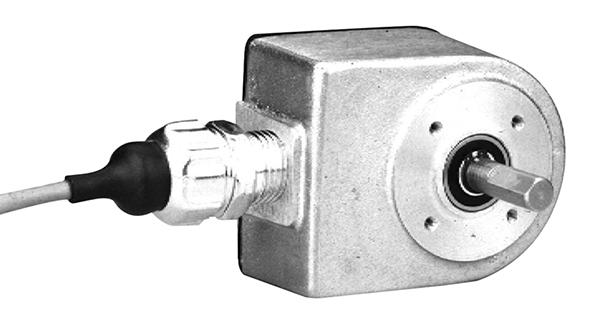

Red Lion Controls ZCG0060C Rotary Encoder
The rugged rotary pulse generator and length sensors convert shaft rotation into high-resolution pulse trains, suitable for precise speed and length measurement applications. Encoders feature a cast aluminum housing, stainless steel shaft, sealed bearings, and operate at up to 6000 RPM, with outputs up to 10 KHz via NPN open collector transistors. The systems are designed for easy installation, reliable performance in dusty environments, and include versatile mounting options. Length sensors with stainless steel handle tubes enable accurate material length measurement when coupled with measuring wheels and hinge clamps, ideal for industrial automation and process control.
Red Lion Controls ZCG0060C Rotary Encoder Specifications:
- Housing Material: Cast aluminum
- Shaft Diameter: 3/8 inch (9.53 mm) stainless steel
- Maximum Speed: 6000 RPM
- Output Frequency: Up to 10 KHz
- Output Type: NPN open collector transistor, max 40 mA
- Supply Voltage: +8 to +35 VDC, reverse polarity protected
- Cable Length: 10 feet (3 m)
- Weight (less cable): Rotary pulse generator 0.42 kg, Length sensors 0.62 kg
- Operating Temperature: -18°C to +60°C
- Sealed bearings, gasketed enclosure, designed for dust and dirt resistance
- Pulse per revolution options: 10, 12, 20, 60, 100, 120, 200
- Mechanical Speed Limit: 6000 RPM
- Radial and axial shaft load capacity: 15 Ibs. (66.7 N)
- Mounting: Face-mount with threaded holes, flexible coupling compatible
- Measurement accuracy influenced by wheel wear and material properties
Buy the Red Lion Series ZCG Rotary Pulse Generator: ZCG0060C
Order the Red Lion ZCG0060C rotary encoder online today to ensure reliable shaft speed measurement in harsh environments. Featuring rugged cast aluminum housing, stainless steel shaft, sealed bearings, and high-frequency output, this device offers superior accuracy up to 10 KHz. It is ideal for high-speed applications up to 6000 RPM, with versatile mounting options and quick installation. Enhance your automation systems with this durable, reliable encoder designed for dust-heavy and demanding industrial settings, providing precise feedback essential for process control and speed monitoring.
Get Red Lion ZCG0060C today—built for precision and long-lasting durability in industrial automation.
