SAMTEC FFSD05D060001N Flat IDC Wire Cable Connector
The SAMTEC FFSD series connector is a versatile solution for connecting flat IDC wire cables. Constructed with a PBT insulator and BeCu contacts, this connector ensures reliable electrical connections. It supports a current rating of 2.3A per pin (when using 2 pins powered) and operates within a temperature range of -40°C to +105°C. Available with various options including assembled length, polarization, and strain relief, the FFSD series is suitable for a wide range of industrial and commercial applications. Please note that this series is non-standard and non-returnable.
SAMTEC FFSD05D060001N Flat IDC Wire Cable Connector Specifications:
- Material: Insulator: PBT, Contact: BeCu
- Plating: 10 µ" (0.25 µm) Au over 50 µ" (1.27 µm) Ni on contact area; Sn over 50 µ" (1.27 µm) Ni
- Wire Gauge: 30 AWG
- Current Rating: 2.3 A per pin (2 pins powered)
- Operating Temperature: -40 °C to +105 °C
- Lead Size Accepted: (0.41 mm) .016" SQ
- Insertion Depth: (2.64 mm) .104" to (3.17 mm) .125"
- RoHS Compliant: Yes
- Mates With: FTS, FTSH, EHF, SHF, ESHF
- Polarization Option: Notch option
- Assembled Length Option: -DXX
- Strain Relief Option: -O, -M, -R or –DXX
- Minimum Assembled Length: 2 inches

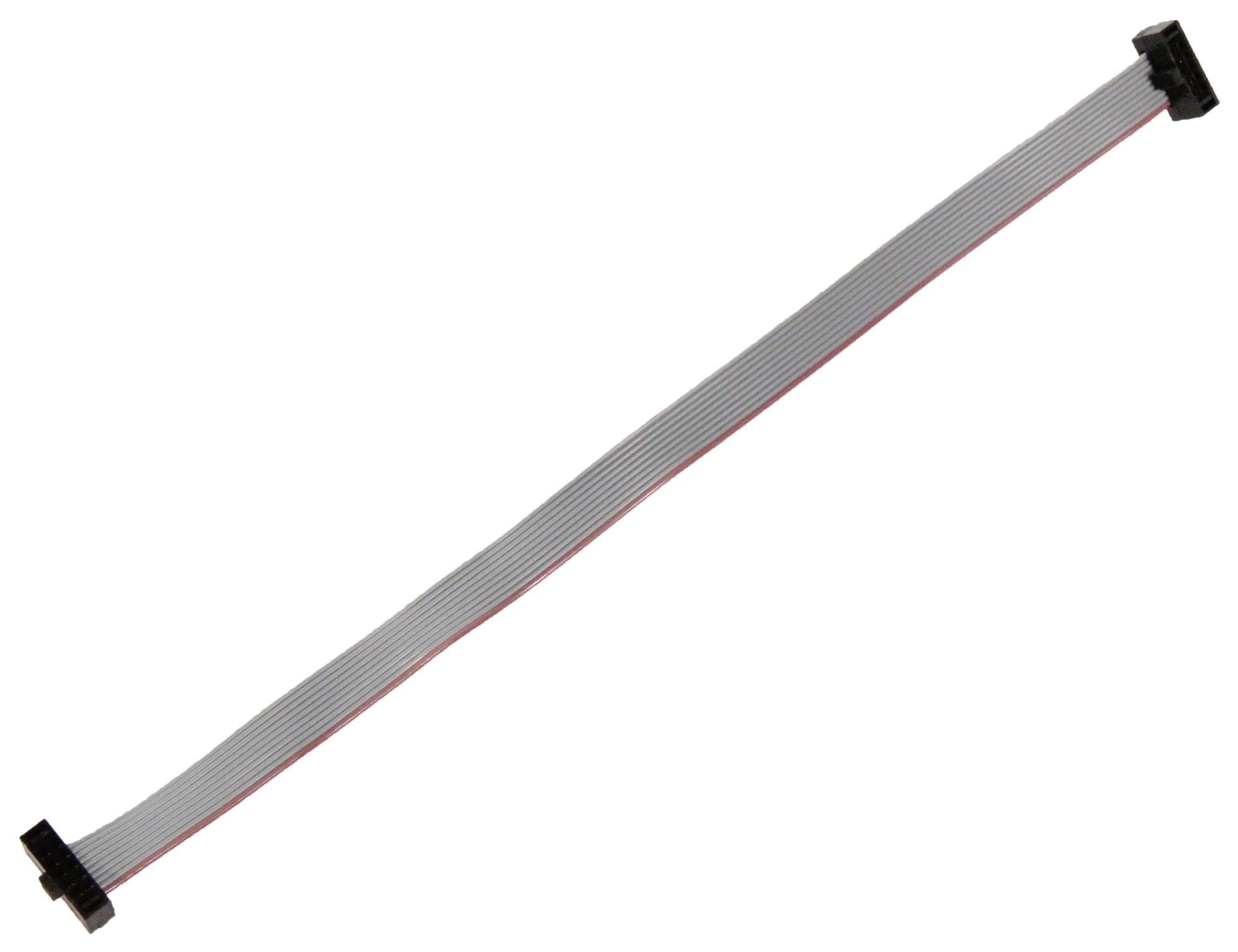

Buy the FFSD-05-D-06.00-01-N SAMTEC Flat IDC Wire Cable Connector | myMectronic
Securely purchase the SAMTEC FFSD-05-D-06.00-01-N connector online for reliable flat flex cable connections.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC FFSD05D060001N?
You can click on the BUY or RFQ button to purchase FFSD05D060001N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FFSD05D060001N?
You can download the FFSD05D060001N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FFSD05D060001N?
SAMTEC
