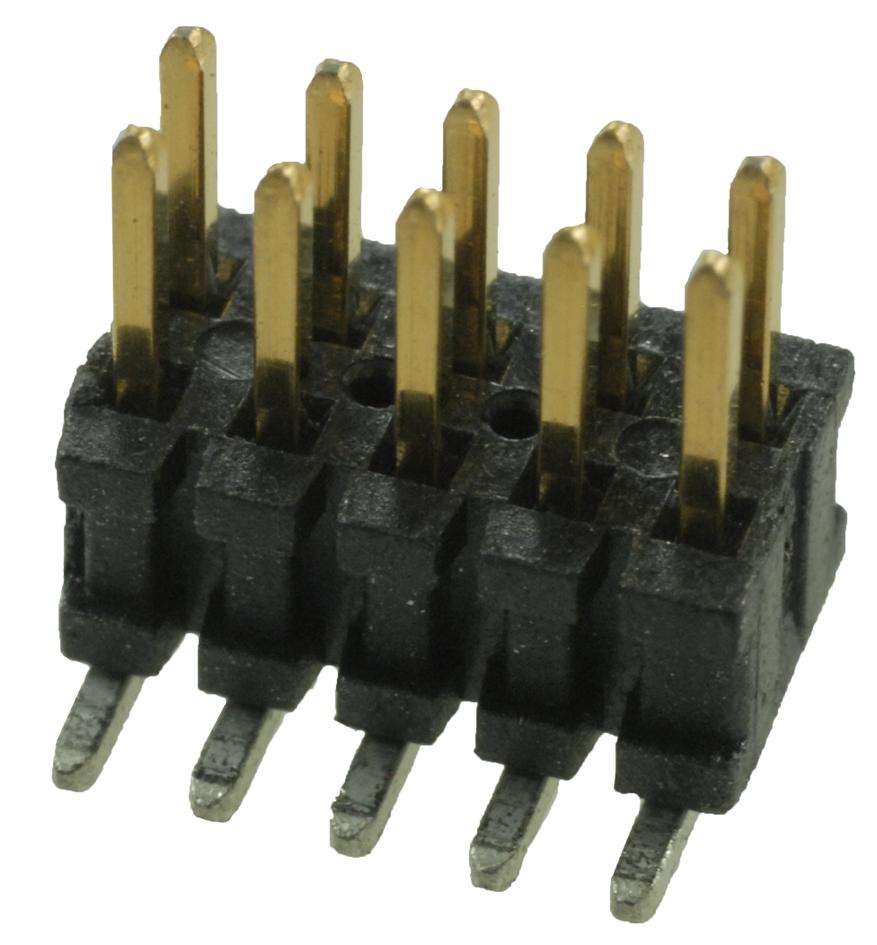

SAMTEC FTSH12401LDVEJ Micro Pitch Connector
The FTSH12401LDVEJ is a high-quality, surface-mount micro pitch connector designed for reliable PCB connections. It features a black liquid crystal polymer insulator and phosphor bronze terminals with gold over nickel plating, ensuring corrosion resistance and durability. Rated for 3.4 A per pin, it operates from -55°C to +125°C, making it suitable for demanding environments. The connector includes molded pick-and-place pads, positive alignment features, and optional shrouds for enhanced protection. Ideal for compact electronic assemblies requiring precise, secure connections in high-performance applications.
SAMTEC FTSH12401LDVEJ Micro Pitch Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μin nickel
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Surface Mount: Yes
- Pitch: 1.27 mm (.050 inch)
- Pin Count: Varies (e.g., 2 to 25 pins)
- Molded pick & place pads included
- Optional end shrouds and ejector shrouds available
- Design tolerances: Max coplanarity 0.10 mm (.004 inch) or 0.15 mm (.006 inch) depending on tail option
- Certifications: RoHS compliant, UL recognized, others as per specifications
Buy the Buy Samtec FTSH12401LDVEJ Part Number FTSH12401LDVEJ Online
Order the Samtec FTSH12401LDVEJ connector online today to ensure your electronic project benefits from high-quality, durable, and precise PCB connections. This connector features gold-over-nickel plating, a black liquid crystal polymer insulator, and a compact pitch of 1.27 mm, making it ideal for space-constrained electronic assemblies. Its operating temperature range of -55°C to +125°C allows use in demanding environments. With molded pick & place pads and optional shrouds, it guarantees secure, reliable connections for high-performance applications in various industries.
Get Samtec FTSH12401LDVEJ today—built for precision, durability, and reliable PCB connection solutions for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FTSH12401LDVEJ?
You can click on the BUY or RFQ button to purchase FTSH12401LDVEJ from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH12401LDVEJ?
You can download the FTSH12401LDVEJ datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH12401LDVEJ?
SAMTEC
