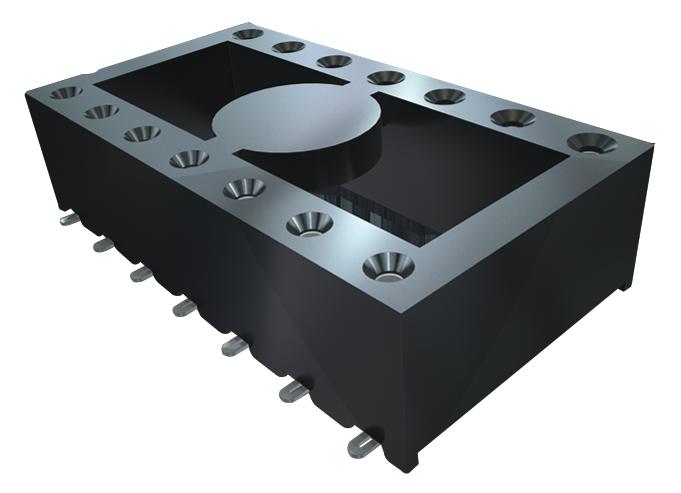

SAMTEC ICF640SO Dual-Row DIP Socket
The ICF series 0.1-inch surface-mount dual-row screw machine DIP socket features a black liquid crystal polymer insulator and durable contact terminals made of beryllium copper plated with tin or gold over nickel. Offering a contact resistance of 10 milliohms, it operates effectively across a temperature range of -55°C to 125°C. This socket supports up to 24 contacts per row, making it ideal for industrial and electronic applications requiring reliable connections and high-performance connectivity solutions.
SAMTEC ICF640SO Dual-Row DIP Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Beryllium Copper
- Contact Plating: Tin or Gold over Nickel
- Contact Resistance: 10 milliohms
- Operating Temperature Range: -55°C to 125°C
- Number of Contacts: Up to 24 per row
- Insertion Depth: 2.54 mm (.100") to 3.81 mm (.150")
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Base Material: Liquid Crystal Polymer
- Suitable for Surface Mount Technology (SMT)
Buy the Samtec ICF640SO – Reliable DIP Socket for Industrial Applications
Purchase the Samtec ICF640SO online today and enhance your electronic projects with this reliable dual-row DIP socket. Featuring a black liquid crystal polymer insulator and contact terminals of beryllium copper plated with tin or gold over nickel, it offers excellent durability and low contact resistance. Supporting up to 24 contacts per row, it operates over a temperature range of -55°C to 125°C, ensuring stable performance in industrial environments. Easy to install and RoHS compliant, secure your advanced connection solution now.
Order your Samtec Series ICF640SO today and give your projects the dependable, high-quality connectivity they deserve.
Frequently Asked Questions
Where can I buy SAMTEC ICF640SO?
You can click on the BUY or RFQ button to purchase ICF640SO from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ICF640SO?
You can download the ICF640SO datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ICF640SO?
SAMTEC
