SAMTEC MMT13601TSHP High-Density PCB Connector
The MMT series is a high-precision, surface-mount and mixed-technology socket system designed for flexible PCB connections. Featuring a 2.00 mm (.0787 inch) pitch, it supports single or double-row configurations with a variety of optional features such as alignment pins, locking clips, and molded pick & place pads. Made from black liquid crystal polymer insulator and phosphor bronze contacts, it offers gold or tin plating over nickel, with operating temperature ranges from -55°C to +125°C depending on plating. Suitable for applications requiring reliable, RoHS-compliant high-density connector solutions.
SAMTEC MMT13601TSHP High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Au or Sn over 50 µ" (1.27 µm) Ni
- Pitch: 2.00 mm (.0787 inch)
- Number of Positions: Variable, e.g., 200, 250, 300
- Temperature Rating: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliance: Yes
- Max thickness: 0.004 inch (0.0938 inch) or 0.006 inch (0.1524 inch) depending on style
- Surface Mount and Mixed Technology Compatibility
- Optional Features: Alignment pins, locking clips, molded pick & place pads, different plating options
- Application: Suitable for high-density PCB connections, surface mount, and mixed-technology applications

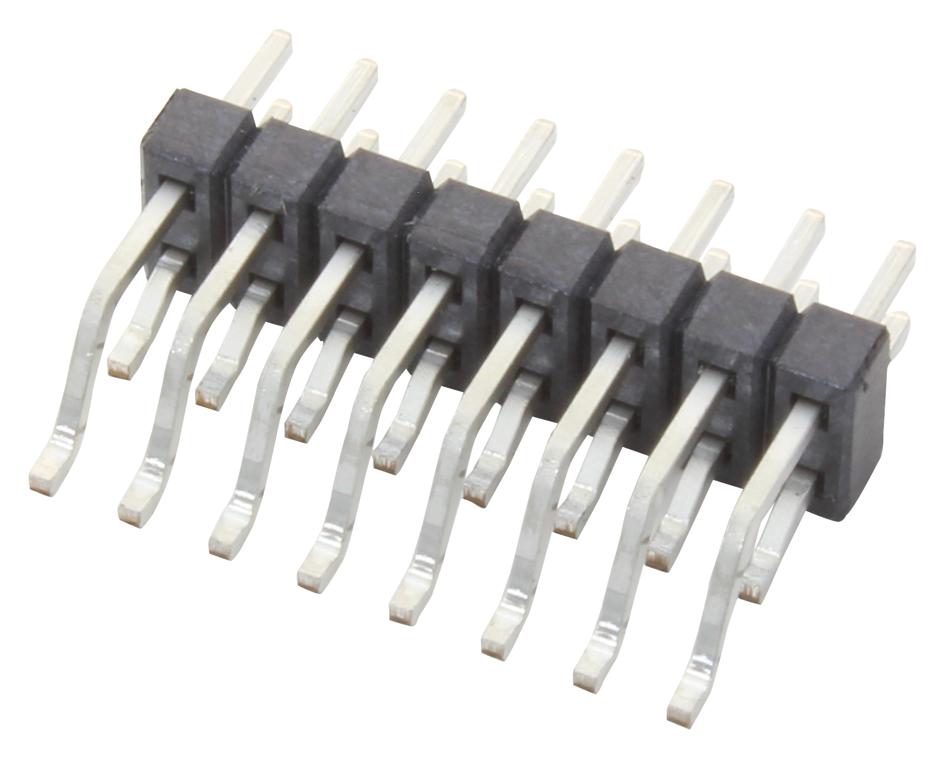

Buy the Samiec Series MMT: High-Density 2.00 mm Pitch Connector MMT13601TSHP
Enhance your electronic assembly with the Samiec MMT series high-density connector offering a 2.00 mm pitch, RoHS compliance, and flexible configurations. Made from durable liquid crystal polymer insulator and phosphor bronze contacts, it supports gold or tin plating over nickel, ensuring excellent electrical performance over a wide temperature range. Perfect for surface mount applications in high-density designs, the MMT connector features optional alignment pins, locking clips, and molded pads for easy installation. Order online today to ensure your project benefits from proven, reliable connection solutions.
Buy Samiec MMT13601TSHP now and experience unmatched reliability and performance for your high-density PCB connection needs.
Frequently Asked Questions
Where can I buy SAMTEC MMT13601TSHP?
You can click on the BUY or RFQ button to purchase MMT13601TSHP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMT13601TSHP?
You can download the MMT13601TSHP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMT13601TSHP?
SAMTEC
