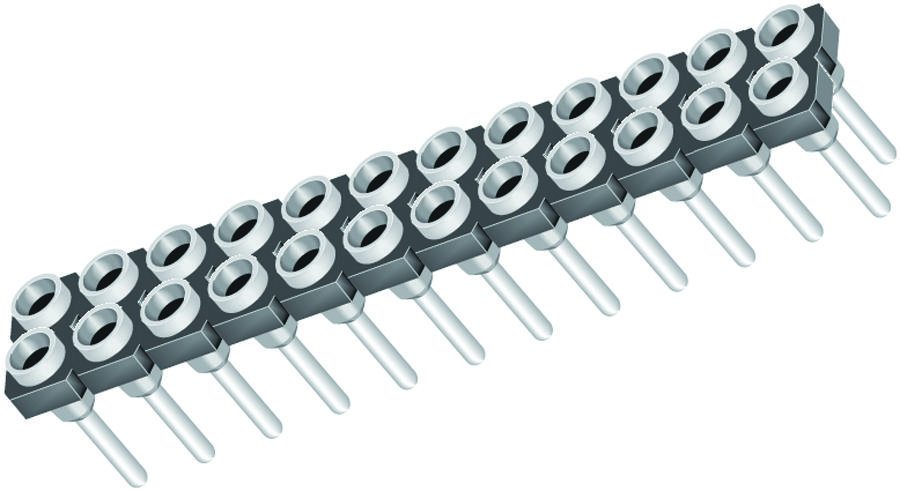

SAMTEC SDL108T12 Socket Strip
The SDL series from Samtec features low-profile, double-row screw machine socket strips designed for through-hole mounting. Compatible with various Samtec connectors, these sockets have a 2.54 mm pitch, support 1 to 36 contacts per row with vertical orientation, and incorporate micro sockets with hollow-leg leads. Made from black glass-filled polyester, they operate from -55°C to 125°C, with contacts plated in gold or tin at 30 micrometers. Constructed with beryllium copper contacts in machined brass shells, they deliver a contact resistance of 10 milliohm. These UL-listed sockets are ideal for industrial, automation, and electronic applications, offering high reliability and low insertion force options.
SAMTEC SDL108T12 Socket Strip Specifications:
- Pitch: 2.54 mm
- Number of contacts: 1 to 36 per row
- Material: Black glass-filled polyester insulator
- Contact Material: BeCu (Beryllium Copper)
- Shell Material: Brass
- Plating: Au or Sn over 30 μm Ni
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohm
- Insertion Force: Standard 9 oz (2.50 N), Low 25 oz (0.70 N)
- Withdrawal Force: Standard 2.5 oz (0.70 N), Low 2 oz (0.56 N)
- RoHS Compliant: Yes
- Suitable for through-hole mounting and industrial applications
- Made by Samtec
- Standards: UL E111594
Buy the Samtec Series SDL Socket Strips: SDL108T12
Discover the reliable performance of Samtec SDL series socket strips, featuring low-profile design, high temperature tolerance, and gold or tin plating. Perfect for industrial, automation, and electronic applications, these socket strips offer consistent contact resistance and robust construction. With compatibility for various Samtec connector series, they ensure secure connections and easy mounting. Designed for durability and high performance, order online today to enhance your electronic assembly projects with high-quality, cost-effective socket strips for long-term reliability.
Get Samtec SDL108T12 socket strips today—built for precision, durability, and reliable connection in electronic and industrial assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SDL108T12?
You can click on the BUY or RFQ button to purchase SDL108T12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SDL108T12?
You can download the SDL108T12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SDL108T12?
SAMTEC
