SAMTEC SMM10502SMS Board Mate Connector
The SMM-105-02-S-D is a high-reliability surface-mount board mate connector made of liquid crystal polymer with BeCu contacts. It features gold or tin plating over nickel, with a current rating of 3.2 A per pin and a voltage rating of 350 VAC. Operating temperature ranges from -55°C to +125°C, supporting up to 100 insertion cycles. Designed for easy SMT lead coplacement, it offers optional features like pick & place pads and optional PCB layouts, making it ideal for demanding electronic applications requiring durability and precise connections.
SAMTEC SMM10502SMS Board Mate Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 p" (1.27 μm) Ni
- Current Rating: 3.2 A per pin (two pins powered)
- Voltage Rating: 350 VAC
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 3.05 mm (0.120") to 3.25 mm (0.128")
- Max Cycles: 100 with 10 μm Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Maximum Length: 5.50 mm
- Dimensions: Locking clip standard, optional polarizations available
- Temperature Range supported for high-reliability applications
- Compatible with pick & place pads, optional PCB layouts
- Suitable for demanding electronic and automation applications

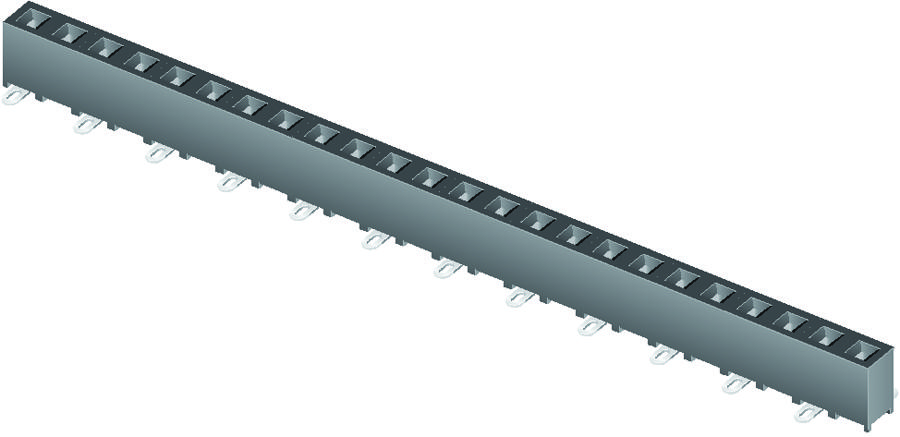

Buy the Buy Samtec SMM-105-02-S-D Part Number SMM10502SMS Online
Purchase the high-performance Samtec Board Mate Connector SMM-105-02-S-D online and ensure your electronic assemblies are equipped with durable, reliable, and high-quality connections. This connector features advanced liquid crystal polymer insulation, BeCu contacts with gold or tin plating, and is rated for 350 VAC and -55°C to +125°C. Designed for high cycle life and easy SMT placement, it’s ideal for demanding applications that require precision, durability, and top performance. Get yours today and enhance your project’s reliability and efficiency.
Order your Samtec Series SMM-105-02-S-D connector today and secure high-reliability, durable connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SMM10502SMS?
You can click on the BUY or RFQ button to purchase SMM10502SMS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM10502SMS?
You can download the SMM10502SMS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM10502SMS?
SAMTEC
