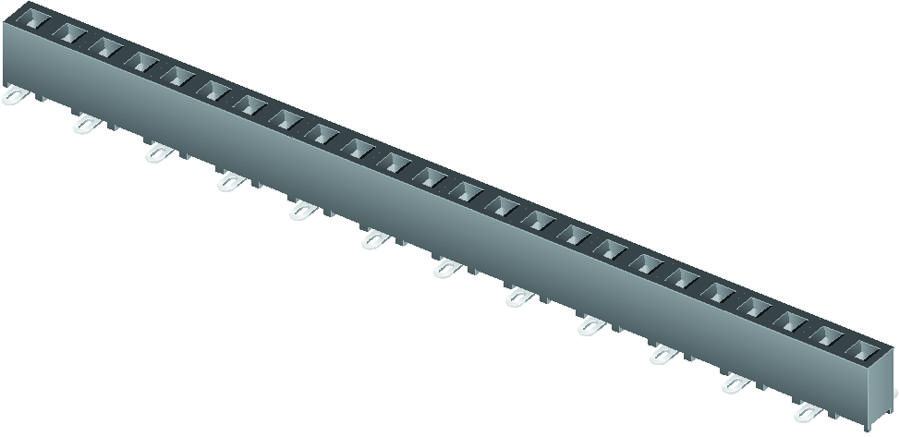

SAMTEC SMM11402SSK High-Current Edge Connector
The SAMTEC SMM11402SSK is a high-reliability board mount connector with liquid crystal polymer insulators and BeCu contacts plated with Sn or Au over Ni. It supports current ratings up to 3.2 A per pin, operates from -55°C to +125°C, and can withstand over 100 insertion cycles. With optional PCB and cable mates, it is suitable for demanding applications requiring robust electrical performance, quick mating, and RoHS compliance. Its compact design ensures easy integration into complex electronic assemblies, ideal for high-density and reliable connections.
SAMTEC SMM11402SSK High-Current Edge Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 μ" Ni
- Current Rating: 3.2 A per pin
- Voltage Rating: 350 VAC
- Operating Temperature Range: -55 °C to +125 °C
- Insertion Depth: 0.120" to 0.128" (3.05 mm to 3.25 mm)
- Max Cycles: 100 with 10 μ
- Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Length: 2.00 mm (typical)
- RoHS: Yes
- Packaging: Non-standard, non-returnable
- Supported Mounting: PCB and cable mates, optional
- Design Features: Four point redundancy, locking clip, compatible with SMT lead cop, RoHS compliant
Buy the Buy SAMTEC SMM11402SSK Part Number SMM11402SSK Online
Purchase the SAMTEC SMM11402SSK connector online for your demanding electronic assemblies. With advanced liquid crystal polymer insulators and BeCu contacts plated with gold or tin, it supports up to 3.2 A per pin, operates from -55°C to +125°C, and withstands over 100 insertion cycles. Its compact size and RoHS compliance make it suitable for high-density, reliable connections in various industrial and electronic applications. Experience quick, secure mating for enhanced device performance.
Order your SAMTEC Series SMM11402SSK connector today and ensure reliable performance with its high-current capacity and durability for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SMM11402SSK?
You can click on the BUY or RFQ button to purchase SMM11402SSK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM11402SSK?
You can download the SMM11402SSK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM11402SSK?
SAMTEC
