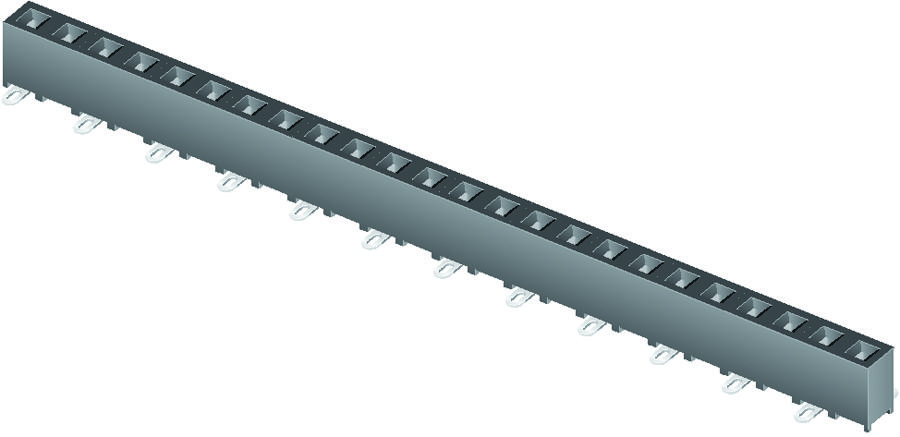

SAMTEC SMM11802SSK PCB Connector
The SMM11802SSK is a high-reliability board mate connector designed with liquid crystal polymer insulators and BeCu contact material. It features gold or tin plating over nickel, operates within a temperature range of -55°C to +125°C, and supports current ratings of 3.2 A per pin. The connector offers an insertion depth of approximately 3.05 mm to 3.25 mm, with up to 100 mating cycles, ensuring durability and reliable connections for demanding electronic applications. Suitable for PCB layouts requiring high performance and long-term stability.
SAMTEC SMM11802SSK PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 µ" (1.27 µm) Ni
- Current Rating: 3.2 A per pin
- Voltage Rating: 350 VAC
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 3.05 mm to 3.25 mm (0.120" to 0.128")
- Max Cycles: 100 with 10 µ" (0.25 µm) Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Length: Varies with option, approximately 3.05 mm to 3.25 mm
- Housing Material: Liquid Crystal Polymer
- Surface Finish: Gold or Tin over Nickel
- Compatible with SMT processing
- Connector Type: Board Mate with optional PCB layouts
- Application: High-performance electronic assemblies needing durable, reliable connectors
- Dimensions and mounting: Approximates 5.50 mm pitch
Buy the Samlec Series SMM PCB Connector: SMM11802SSK
Enhance your electronic assemblies with the high-reliability SMM11802SSK connector from Samlec. Designed with durable liquid crystal polymer insulators and BeCu contacts, this connector operates efficiently within -55°C to +125°C. Rated for 3.2 A per pin and capable of 100 mating cycles, it ensures long-lasting, dependable connections. Whether for high-performance embedded systems or industrial electronics, this RoHS-compliant, lead-free connector offers seamless integration, outstanding durability, and superior electrical performance. Purchase online now for quick and reliable sourcing of this essential component.
Buy Samlec SMM11802SSK now and experience unmatched reliability and performance in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SMM11802SSK?
You can click on the BUY or RFQ button to purchase SMM11802SSK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM11802SSK?
You can download the SMM11802SSK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM11802SSK?
SAMTEC
