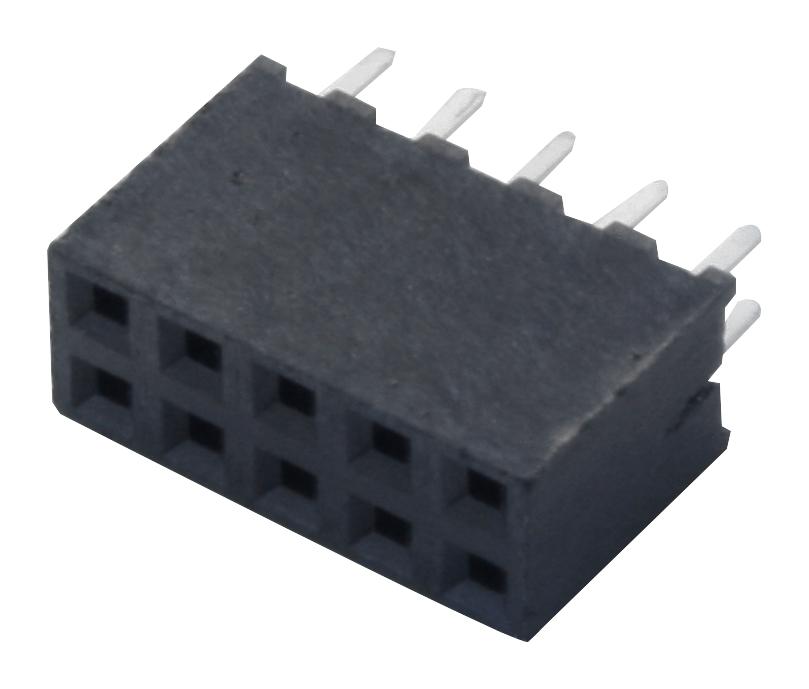

SAMTEC SQW10601FD001 Rugged Socket
The rugged sockets are designed for reliable electrical connections in demanding applications, offering a choice of two to six rows with surface mount or through-hole options. Crafted from phosphor bronze contact material with Sn or Au plating, these sockets support voltage ratings up to 281 VAC and operate within a temperature range suitable for high-performance environments. Their RoHS compliance and lead-free solderability make them ideal for modern manufacturing. With various sizes and options, these cost-effective, durable sockets ensure secure connections for PCB integrations and complex electronic assemblies.
SAMTEC SQW10601FD001 Rugged Socket Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Contact
- Voltage Rating: 281 VAC mated with TMM; 250 VAC with TMMH
- Operating Temp Range: Suitable for high-performance environments
- Insertion Depth: 0.787" (2.62 mm)
- Dimensions: 0.103" to pitch, 0.198" with Max Cydess
- Number of Positions: 300 (2.00) with options for 4 through 28 positions
- RoHS Compliance: Yes
- Lead-Free, Solderable: Yes for -D & -D options
- Process Compatibility: RoHS compliant, surface mount, through-hole options available
- RoHS and lead-free certified for environmentally friendly manufacturing
Buy the Buy Samtec SQW Series Cost-Effective Rugged Sockets Part Number SQW10601FD001 Online
Purchase the high-performance Samtec rugged socket series SQW10601FD001 online to ensure secure electrical connections in demanding applications. These sockets are designed for durability with options for surface mount or through-hole installation, supporting voltages up to 281 VAC. Crafted from phosphor bronze with Sn or Au plating, they are RoHS compliant and lead-free, meeting modern environmental standards. Ideal for PCB connections in various electronic devices, these cost-effective sockets provide a reliable and long-lasting interface, simplifying assembly and maintenance for engineers and manufacturers worldwide.
Order your Samtec Series SQW10601FD001 rugged socket today and ensure a reliable, high-quality connection for your electronic assembly needs.
Frequently Asked Questions
Where can I buy SAMTEC SQW10601FD001?
You can click on the BUY or RFQ button to purchase SQW10601FD001 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW10601FD001?
You can download the SQW10601FD001 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW10601FD001?
SAMTEC
