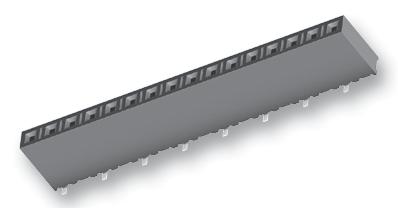

SAMTEC SSM102SSVLCK Socket Mount Connector
The SSM-120-S-DV is a high-quality socket mount connector designed for reliable PCB connections. It features a liquid crystal polymer insulator, phosphor bronze contacts with gold or tin plating, and a current rating of 5.2A per pin. Operating temperatures range from -55°C to +125°C with gold plating. It supports insertion depths of approximately 4.34 mm (.171 inches) to 7.24 mm (.285 inches), accommodating 2 to 36 positions. The connector is compliant with industry standards, ensuring durable and precise electrical connections suitable for various electronic applications.
SAMTEC SSM102SSVLCK Socket Mount Connector Specifications:
- Insulator Material: Liquid Crystal Polymer (Black)
- Contact Material: Phosphor Bronze with Gold or Tin Plating
- Current Rating: 5.2A per pin
- Voltage Rating: 572V
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 4.34 mm to 7.24 mm
- Positions Supported: 2 to 36 (see detailed options)
- Coplanarity: Less than 0.15mm for ≤28 positions, less than 0.20mm for >27 positions
- Free Solderable: Yes
- European Recognitions: See www.samtec.com/quality
- Compatible with: Single Row Horizontal Pin Mounts
- Dimensions: Length varies with style, overall approx. 6.08 mm to 8.13 mm
- Style: SSM Series, options include -SH, -DV, -SV, -DH
- Approvals: Industry compliant, non-standard and non-returnable parts available
- Environmental Ratings: Compliant with industry standards
Buy the Buy Samtec SSM120SSVLCK Part Number SSM120SSVLCK Online
Purchase the Samtec socket mount connector online today and ensure a secure, high-performance connection for your electronic projects. This connector features durable phosphor bronze contacts with gold or tin plating, supporting up to 36 positions. Its liquid crystal polymer insulator offers excellent thermal stability, withstanding -55°C to +125°C. The connector is solderable, supports various configurations, and meets strict industrial standards. Buy now for quick delivery and guaranteed quality, perfect for ensuring reliable electrical connections in your PCB applications. Enhance your electronics with this versatile and dependable component.
Get Samtec SSM120SSVLCK today—built for reliable PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SSM102SSVLCK?
You can click on the BUY or RFQ button to purchase SSM102SSVLCK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM102SSVLCK?
You can download the SSM102SSVLCK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM102SSVLCK?
SAMTEC
