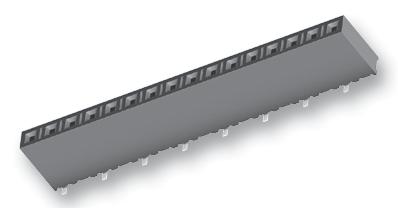

SAMTEC SSM103LSVK Socket Mount Connector
The SSM103LSVK is a versatile socket-mount connector designed for high-reliability electronic applications. Crafted from black Liquid Crystal Polymer insulator and phosphor bronze contact material with gold plating, it supports a current rating of 5.2 Amperes per pin and operates within a temperature range of -55°C to +125°C with gold plating. Suitable for 2 to 36 positions, it features various mounting options, excellent coplanarity, and pass-through capabilities. Its compact size and robust construction make it ideal for PCB connections demanding precision, durability, and high-performance electrical contact reliability.
SAMTEC SSM103LSVK Socket Mount Connector Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Gold
- Current Rating: 5.2 Amperes per pin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Number of Positions: 2 to 36
- Insertion Depth: 4.34 mm to 7.24 mm
- Board Thickness: Compatible with 1.27 mm (0.050") to 2.29 mm (0.090") PCB
- Contact Resistance: Low contact resistance for reliable connections
- Coplanarity: Less than 0.15 mm for up to 27 positions
- Pass-Through Capability: Supports top or bottom pass-through
- Dimensions: Compact size, suitable for high-density applications
- Solderability: Yes, RoHS compliant
- Compliance: Recognized under various industry standards
Buy the Samtec Series SSM Socket Mount Connector: SSM103LSVK
Discover the high-quality Samtec SSM103LSVK socket mount connector, optimized for PCB connections, offering gold-plated contacts, support for 2 to 36 positions, and excellent durability. Designed for high-current applications with a temperature range of -55°C to +125°C, it ensures reliable electrical performance in demanding environments. Its robust construction and precise dimensions make it ideal for high-density electronic assemblies, providing secure, easy-to-mate connections that enhance device functionality. Order online today for dependable, industry-leading connectivity solutions.
Buy Samtec SSM103LSVK socket mount connector now and experience unmatched reliability and performance for your PCB assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SSM103LSVK?
You can click on the BUY or RFQ button to purchase SSM103LSVK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM103LSVK?
You can download the SSM103LSVK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM103LSVK?
SAMTEC
