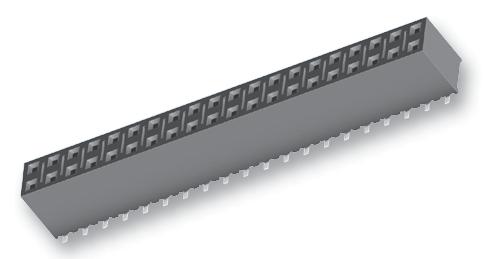

SAMTEC SSM103SMDV PCB Socket Connector
The SSM120-S-DV is a high-performance socket connector designed for easy PCB mounting, featuring a Black Liquid Crystal Polymer insulator and Phosphor Bronze contact material. With a current rating of 5.2 A per pin and an operating temperature range of -55°C to +125°C with Gold plating and -55°C to +105°C with Tin plating, it supports 2 to 40 positions. The connector ensures precise alignment, has an insertion depth of approximately 4.34 mm to 7.24 mm, and is compliant with soldering standards, making it ideal for demanding electronic and industrial applications.
SAMTEC SSM103SMDV PCB Socket Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Contact Plating: Gold or Tin
- Current Rating: 5.2 A per pin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 4.34 mm to 7.24 mm
- Positions: 2 to 40
- Solderability: Yes
- Coplanarity: Less than 0.20 mm for more than 27 positions
- Certification: Recognized standards available on request
- Dimensions: Various lengths up to approximately 8 mm, detailed specifications depend on style
- Applicable for high-density connections, reliable mechanical fit, and ease of assembly
Buy the Samtec SSM120-S-DV – Reliable PCB Socket Connector for Industrial Applications
Secure your electronic assembly with the high-quality PCB socket connector. Designed for durability, ease of installation, and reliable electrical contact, this connector supports up to 40 positions and offers excellent operational temperature range. Ideal for industrial equipment, control systems, and high-density wiring, it ensures precise alignment, low contact resistance, and robust performance under demanding conditions. Purchase online today to enhance your project efficiency with trusted connectivity solutions.
Buy Samtec SSM120-S-DV now and experience unmatched reliability and performance for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SSM103SMDV?
You can click on the BUY or RFQ button to purchase SSM103SMDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM103SMDV?
You can download the SSM103SMDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM103SMDV?
SAMTEC
