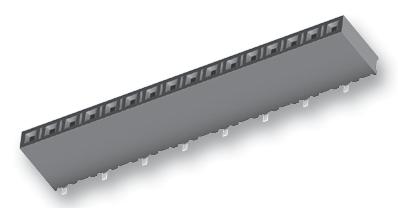

SAMTEC SSM104SSVLC connector socket
The SSM104SSVLC is a high-quality, polarized socket designed for precise connector applications, featuring a liquid crystal polymer insulator, phosphor bronze contact material, and gold or tin plating options. It supports a range of pin counts up to 36 and is suitable for PCB mounting with an insertion depth of approximately 4.34 mm. Operating temperature ranges from -55°C to +125°C, ensuring reliability in demanding environments. Ideal for electronic assembly, this socket provides robust electrical and mechanical performance with high current ratings and excellent coplanarity for surface mounting.
SAMTEC SSM104SSVLC connector socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Contact Plating: Gold or Tin
- Number of Positions: Up to 36
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Approximately 4.34 mm
- Current Rating: 5.2 A per pin
- Pass-Through Body: Yes
- Coplanarity: Less than 0.15 mm for up to 27 positions, less than 0.20 mm for more than 27 positions
- Mounting Style: Surface Mount (SMT)
- Maximum Horizontal Pin Positions: 29
- Dimensions: Length varies with configuration, typical pass-through size approximately 0.171" to 0.285"
- Operating Voltage: Up to 572 V
- Compliance: RoHS, UL recognized
Buy the Buy Samtec SSM104SSVLC Part Number SSM104SSVLC Online
Order the Samtec SSM104SSVLC connector socket online today for reliable PCB mounting solutions with high current capacity and excellent temperature resistance. This polarized socket features gold or tin plating, supporting up to 36 positions, ensuring stable electrical performance and durability in demanding environments. Its insulating liquid crystal polymer body provides excellent thermal stability, while the phosphor bronze contacts offer optimal conductivity. Perfect for electronic assemblies requiring precise, secure connections, this socket is built to meet high industry standards and enhance your project’s reliability and efficiency.
Get Samtec SSM104SSVLC today—designed for precision PCB connections and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SSM104SSVLC?
You can click on the BUY or RFQ button to purchase SSM104SSVLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM104SSVLC?
You can download the SSM104SSVLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM104SSVLC?
SAMTEC
