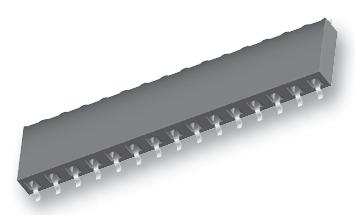

SAMTEC SSM105LMSH Modular Socket Connector
The product is a modular socket connector designed for flexible PCB integration, featuring a black Liquid Crystal Polymer insulator and phosphor bronze contact material. Suitable for applications requiring high current ratings up to 5.2 amperes per pin and voltage ratings up to 572V. Operating temperature ranges from -55°C to +125°C, depending on gold or tin plating. Available in various polarized positions and insertion depths, this connector ensures reliable mateability, with coplanarity specifications below 0.008 inches for up to 50 positions, ideal for high-density electronic assemblies and precise, durable connections.
SAMTEC SSM105LMSH Modular Socket Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Current Rating: 5.2 Amperes per pin
- Voltage Rating: 572V
- Operating Temp Range: -55°C to +125°C with Gold; -55°C to +105°C with Tin
- Insertion Depth: 4.34 mm to 7.24 mm
- Board Spacing: 2.54 mm (0.1 inch)
- Number of Positions: 29 maximum
- Coplanarity: Less than 0.006 inch (0.15 mm) for up to 28 positions, less than 0.008 inch (0.20 mm) for more than 27 positions
- Polarized Positions: Yes
- Durability: Non-standard lengths and styles are non-returnable, consult manufacturer for custom options
Buy the Samtec Series SSM: Modular PCB Socket Connector - SSM105LMSH
Order the Samtec modular socket connector SSM105LMSH online today to ensure your electronic assemblies benefit from high current capacity, precise alignment, and robust durability. Designed with Liquid Crystal Polymer insulation and phosphor bronze contacts, this connector supports up to 5.2A per pin, with voltage ratings up to 572V. Suitable for high-temperature environments ranging from -55°C to +125°C, it offers various polarized options and insertion depths for flexible design integration. Trust Samtec quality for your demanding electronic projects and streamline your assembly process with ease and confidence.
Get Samtec SSM105LMSH today—built for reliable electrical connections in high-density PCBs and tough operating environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM105LMSH?
You can click on the BUY or RFQ button to purchase SSM105LMSH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM105LMSH?
You can download the SSM105LMSH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM105LMSH?
SAMTEC
