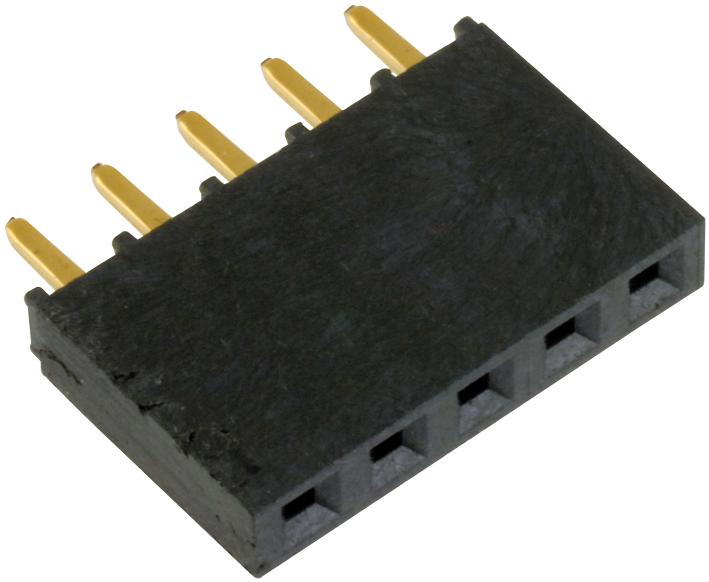

SAMTEC SSQ12522GS Socket Connector
The socket connector features a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating, suitable for high-temperature applications. It supports solder tail design with an insertion depth of 3.68 mm and a normal force of 125 grams, operating from -55 °C to +125 °C depending on plating. Rated for 47 amperes and 465 VAC / 655 VDC, it is RoHS compliant, suitable for power and signal connections in various electronic assemblies, with different lead and row options to meet design needs.
SAMTEC SSQ12522GS Socket Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50 yt" Ni undercoat
- Current Rating: 47 A per pin
- Operating Temp Range: -55 °C to +125 °C with Gold, -55 °C to +105 °C with Tin
- Insertion Depth: 3.68 mm (0.145 inches) or 6.35 mm (0.25 inches)
- Normal Force: 125 grams (4.4 N)
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible Mates: TSW, MTSW, MTLW, TSM, ZW, TSS, ZSS, TSSH, HTSS
- Design Options: Multiple row, lead style, and plating choices available
- Temperature Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- RoHS and REACH compliant for environmental safety
Buy the Samtec Series SSQ Socket Connector: SSQ12522GS
Purchase the Samtec Series SSQ socket connector SSQ12522GS online today for robust and high-performance electronic connections. Designed with a durable insulator and versatile contact options, it supports high current ratings and temperature ranges suitable for power and signal applications. Its RoHS compliance and lead-free solderability ensure environmental safety and manufacturing ease. Available with various plating, row, and lead configurations, this connector guarantees a secure fit and reliable connectivity, making it an essential component for electronic assembly and industrial equipment projects.
Order your Samtec Series SSQ socket connector SSQ12522GS today and provide your projects with reliable, high-current electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ12522GS?
You can click on the BUY or RFQ button to purchase SSQ12522GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ12522GS?
You can download the SSQ12522GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ12522GS?
SAMTEC
