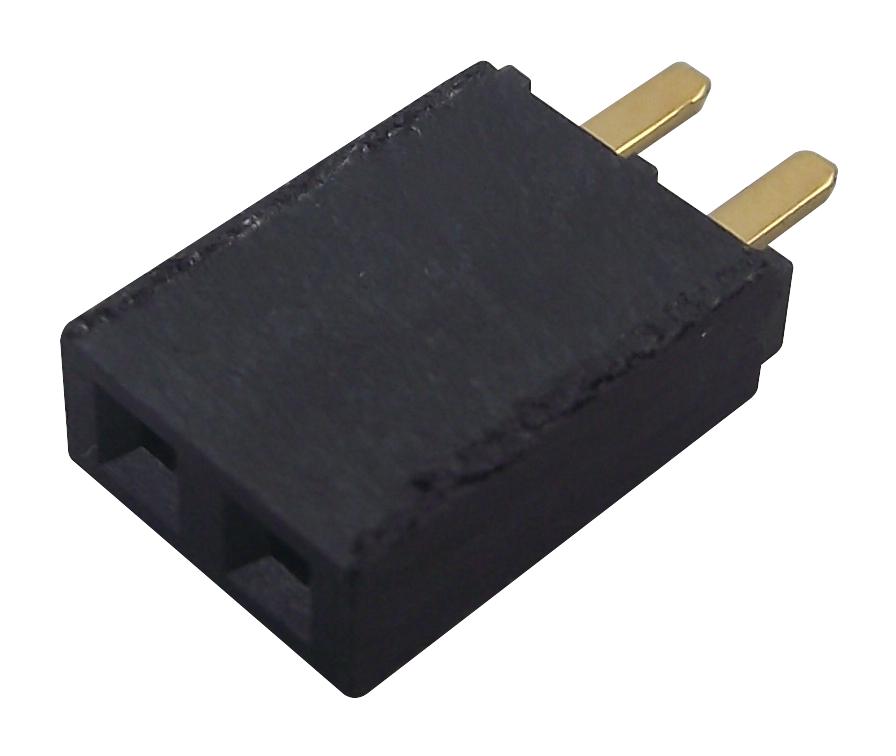

SAMTEC SSW12002GS001 Through-Hole Socket
The SSW-120-02-G-D-RA is a versatile through-hole socket designed for reliable connections in electronic assemblies. Made with high-temperature black insulator material and phosphor bronze contacts, it features 2.54 mm (.100 inch) pitch and gold-plated contacts for enhanced durability and conductivity. This socket supports multiple configurations, including single, double, and triple lead options, with a current rating of up to 4.7 A per pin. Suitable for testing, programming, and prototyping in tight spaces, it ensures secure and stable electrical contact with robust mechanical properties, accommodating various wire sizes and environmental conditions.
SAMTEC SSW12002GS001 Through-Hole Socket Specifications:
- Pitch: 2.54 mm (.100 inch)
- Insulator Material: Black High Temperature
- Contact Material: Phosphor Bronze with Gold or Tin plating
- Current Rating: 4.7 A per pin
- Temperature Range: -55°C to +105°C
- Mounting Style: Through-hole
- Contact Plating: Gold on contact, gold flash on tail, or Tin as specified
- Number of Positions: Up to 36 pins
- Connector Style: SSW series, with options for single, double, or triple lead configurations
- Compatible with various mating connectors and configuration options
- Dimensions: Pitch 2.54 mm, tail length varies up to 7.87 mm
- Designed for PCB mounting and test systems
Buy the Buy Samtec SSW-120-02-G-D-RA Part Number SSW12002GS001 Online
Order the Samtec SSW-120-02-G-D-RA online today and ensure secure, high-quality electrical connections for your electronic projects. This socket offers robust contact material, gold plating for enhanced conductivity, and a versatile design suitable for testing, programming, and assembly work. With a pitch of 2.54 mm and a current rating of 4.7 A per pin, it is ideal for demanding applications requiring reliable performance. Easy to mount on PCB, it supports multiple configuration options and environmental conditions, ensuring long-lasting durability and flexibility in use.
Get Samtec SSW-120-02-G-D-RA today—built for reliable connections, high durability, and versatile electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SSW12002GS001?
You can click on the BUY or RFQ button to purchase SSW12002GS001 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW12002GS001?
You can download the SSW12002GS001 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW12002GS001?
SAMTEC
