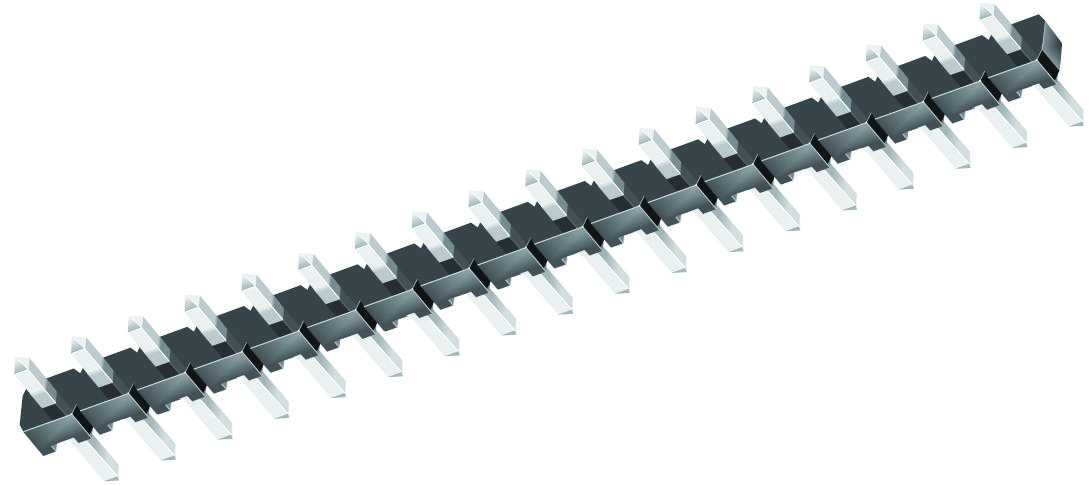

SAMTEC TLW11205GS Low Profile Connector
The TLW-118-06-T-D is a high-quality low profile connector series designed for PCB applications requiring a compact footprint. Featuring black Liquid Crystal Polymer insulators and phosphor bronze terminals with gold or tin plating, it offers reliable electrical performance with RoHS compliance. The series supports various pin configurations, including modified styles for IDC assemblies, with rated temperatures from -55°C to +105°C with tin and up to +125°C with gold plating. Its versatile design accommodates different lengths, styles, and applications in electronics manufacturing, ensuring durability and precision. Ideal for compact electronic devices and connector assemblies requiring a robust, space-efficient solution.
SAMTEC TLW11205GS Low Profile Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze with gold or tin plating
- Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Supported Styles: Standard and Modified for IDC applications
- Pin Configurations: 1 pin per row, customizable lengths and styles
- Construction: High-quality, space-efficient low profile design, approximately 0.64 mm height
- Available Lengths: 2.48 mm, 2.54 mm, 2.48 mm, options for various terminal and pin arrangements
- Certifications: RoHS
Buy the Buy Samtec TLW-118-06-T-D Part Number TLW11205GS Online
Order the Samtec TLW-118-06-T-D connector now and enjoy a space-efficient, high-performance solution for your PCB and electronic assembly needs. Designed with advanced materials like Liquid Crystal Polymer and phosphor bronze, it ensures durability and reliable connections in compact electronic devices. Featuring RoHS compliance and solderability, this connector supports various pin configurations, styles, and lengths for flexible design integration. Perfect for applications requiring a low profile, high-quality connector with gold or tin plating, providing long-lasting performance and easy installation for engineers and manufacturers alike.
Get Samtec TLW-118-06-T-D today—built for space-saving PCB connections and reliable high-quality performance in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TLW11205GS?
You can click on the BUY or RFQ button to purchase TLW11205GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW11205GS?
You can download the TLW11205GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW11205GS?
SAMTEC
