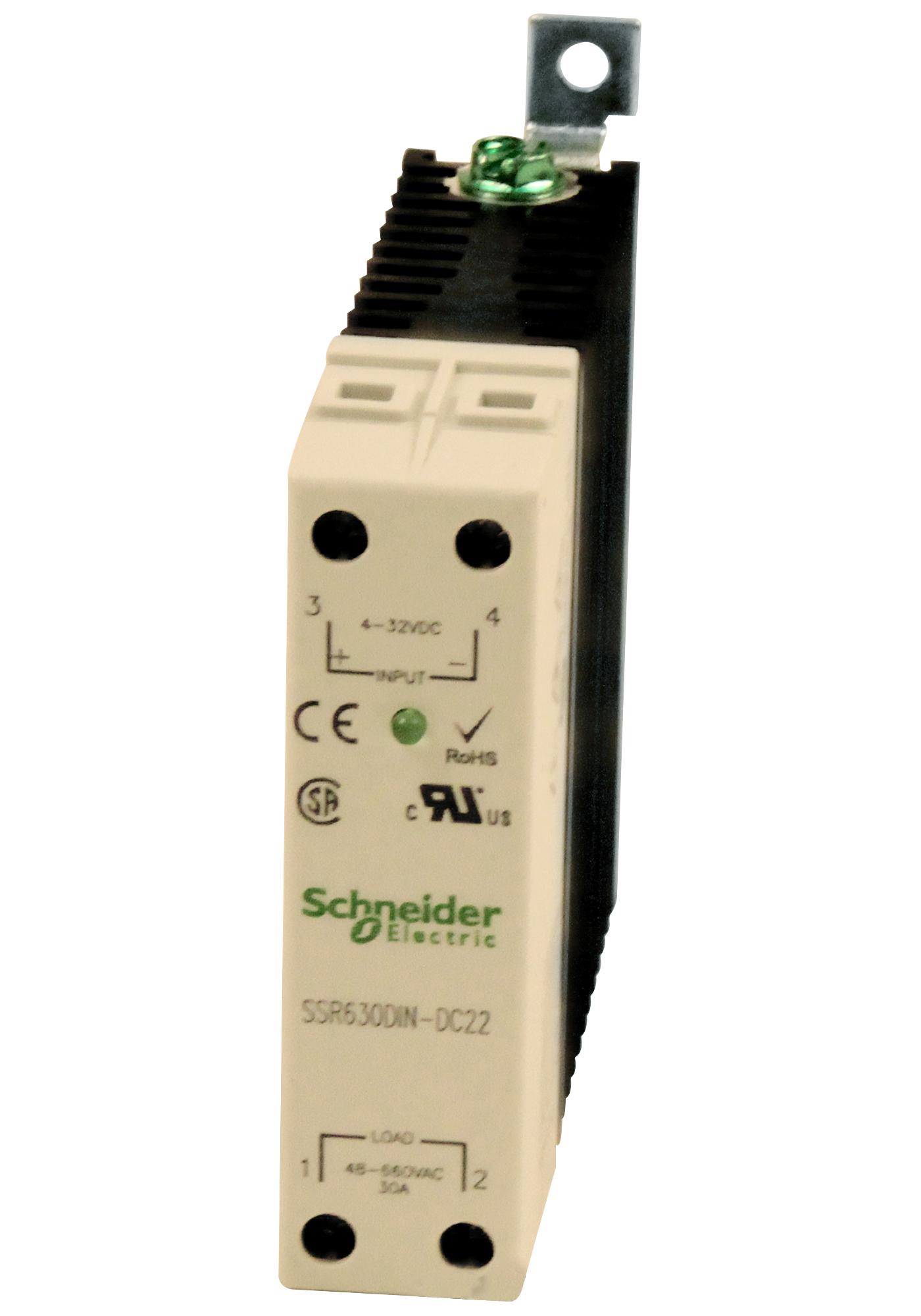

SCHNEIDER ELECTRIC/LEGACY RELAY SSR630DINDC22 Solid State Relay
The SSR630DIN-DC22 is a DIN-rail mounted solid state relay with SCR zero-crossing switching, designed for reliable industrial automation, HVAC, lighting, and thermal management applications. It features a 30A nominal load current with an output voltage range of 48 to 660 VAC and input voltage of 4 to 32 VDC. The relay includes a green LED indicator for input status, thermally conductive epoxy encapsulation for durability, and fingersafe terminals to prevent accidental contact. It operates efficiently from -40°C to 80°C, ensuring long-lasting performance in various environments.
SCHNEIDER ELECTRIC/LEGACY RELAY SSR630DINDC22 Solid State Relay Specifications:
- Main Range: Legacy
- Product Type: Solid state relay
- Nominal Output Current: 30 A
- Output Voltage: 48...660 V AC
- Input Current Limits: 8...12 mA at 32V DC typical
- Switch Function: SPST
- Contacts Type and Composition: NO
- Tightening Torque: 7 N.m for input and output screw terminals
- Connections Terminals: Input and output screw terminals (AWG 10)
- Local Signalling: Input status LED (green)
- Switching Voltage: 4V DC turn-on, 1V DC turn-off
- Maximum Peak Voltage: 1200 V
- Surge Current: 1200 A for 16.6 ms
- Voltage Drop: <1.6 V on-state
- Maximum I²t for fusing: 6000 A²s at 8.3 ms
- Leakage Current: 1 mA at off-state
- Response Time: 8.33 ms turn-on and turn-off
- Dimensions: Height 3.85 in (97.7 mm), Width 0.88 in (22.4 mm), Depth 3.15 in (80 mm)
- Product Weight: 9.88 oz (280 g)
- Environmental Certifications: CSA, CE, RoHS
- Ambient Temperature for Operation: -40°F to 176°F (-40°C to 80°C)
- Ambient Temperature for Storage: -40°F to 257°F (-40°C to 125°C)
