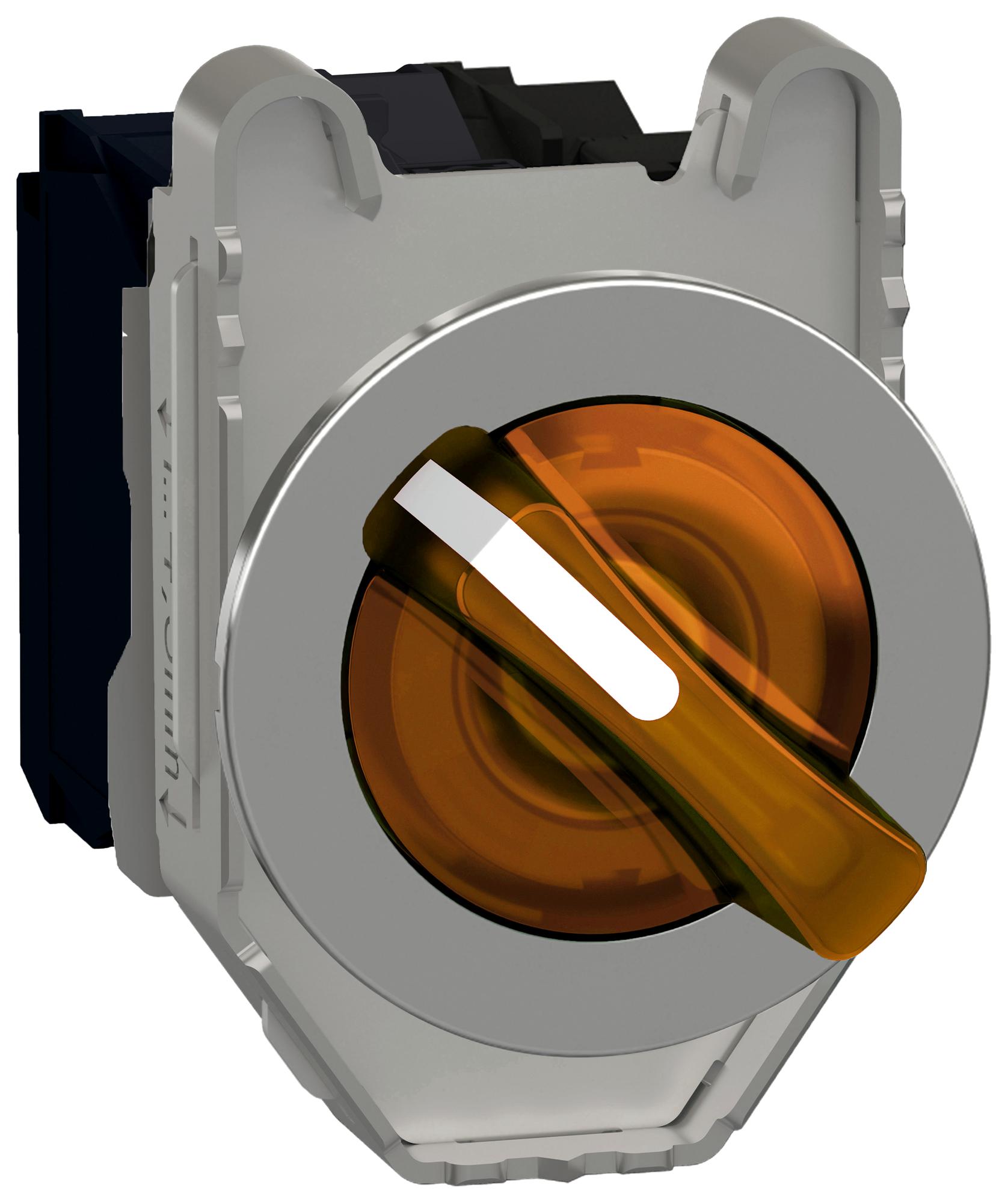

Schneider Electric ZB4FK1553 Selector Switch
The ZB4FK1553 is a flush-mounted orange illuminated selector switch head with a 3-position return to center, designed for industrial control panels. It features a built-in-flush head with a round shape, operates with an operator profile featuring an orange standard handle, and supports multiple electrical configurations with integral LEDs. Its robust construction supports IP66, IP67, IP69, and IP69K protection ratings, with high resistance to pressure washing, vibration, and shocks. Suitable for harsh environments, it conforms to IEC standards and has an operational temperature range from -40°C to 70°C, ensuring durability and reliable performance in demanding settings.
Schneider Electric ZB4FK1553 Selector Switch Specifications:
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.44 in (36.6 mm)
- Overall height: 1.44 in (36.6 mm)
- Overall depth: 1.85 in (47 mm)
- Net weight: 0.17 Ib (0.078 kg)
- Head type: Built-in-flush
- Shape: Round
- Operator profile: Orange standard handle
- Positions: 3 positions +/- 45°
- Resistance to high pressure washer: 7000000 Pa at 55°C, at 0.1m
- Mechanical durability: 500000 cycles
- Environmental ratings: IP66, IP67, IP69, IP69K, Type 13, 12, 4, 4X UL
- IK degree: IKO6
- Standards: IEC 60529, IEC 60068-2-6, IEC 60068-2-27, UL 508, CE
- Certifications: UL Listed, CSA, CCC, EAC
- Vibration resistance: 5 gn 10-500 Hz
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Temperature range (storage and operation): -40°F to 158°F (-40°C to 70°C)
- Warranty: 18 months
- Sustainability: Green Premium product, REACh and RoHS compliant
Buy the Schneider Electric Series Harmony XB4 Selector Switch: ZB4FK1553
Order the Schneider Electric ZB4FK1553 selector switch online today to ensure your control panel is equipped with a durable, IP69K-rated, orange illuminated switch. Its robust design withstands high-pressure washing, vibration, and shock, making it ideal for harsh industrial settings. Featuring a built-in-flush round head with three positions, it offers easy operation and reliable visibility with integrated LEDs. Enhance your automation system with this proven component for safety, durability, and seamless integration in demanding environments.
Buy Schneider Electric ZB4FK1553 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4FK1553?
You can click on the BUY or RFQ button to purchase ZB4FK1553 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4FK1553?
You can download the ZB4FK1553 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4FK1553?
Schneider Electric
