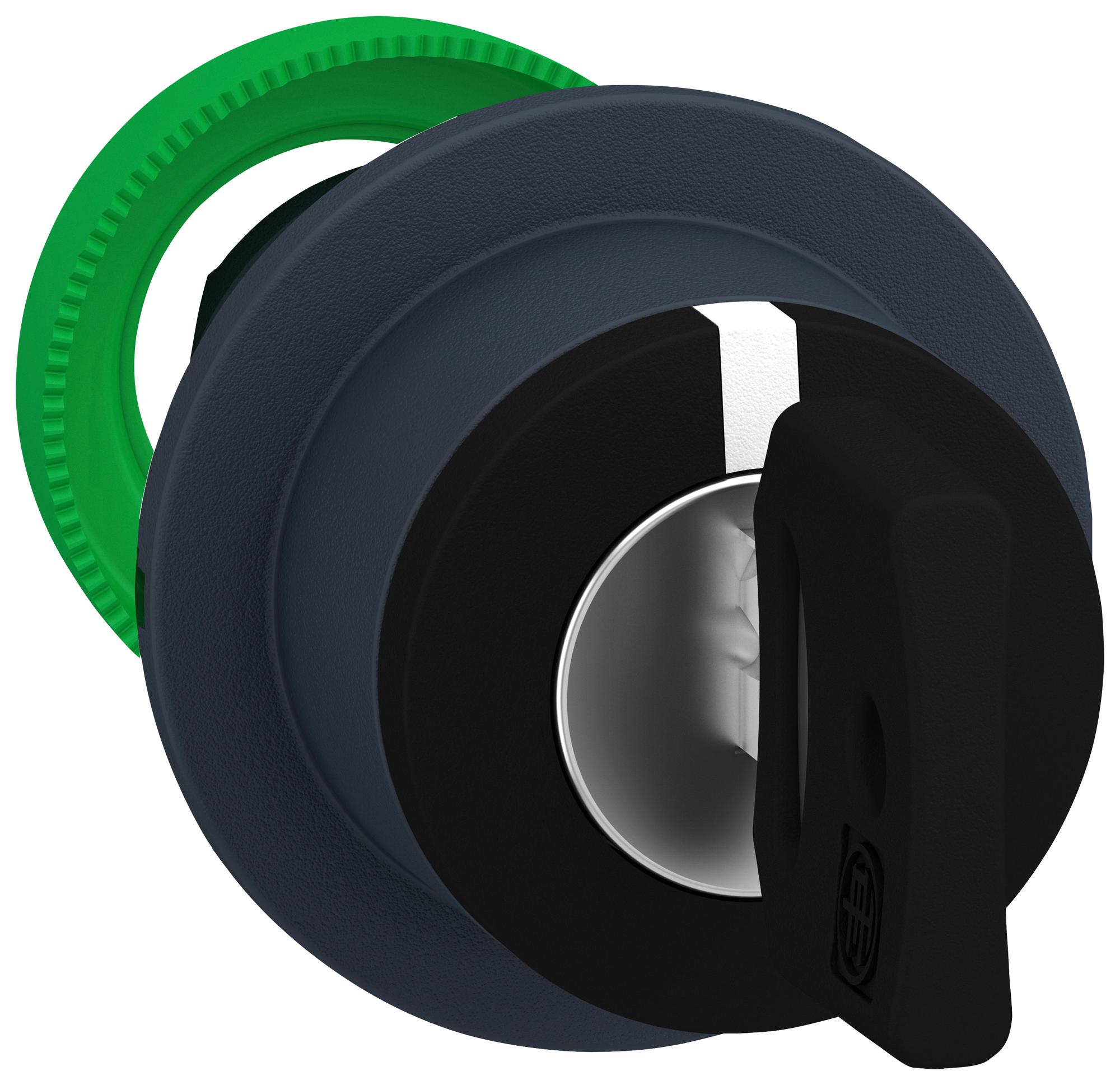

Schneider Electric ZB5FG9D Selector Switch Head
The flush mounted selector switch head is part of the Harmony XB5 range, featuring a round shape with a black operator profile and a dark grey plastic bezel. Designed for 30 mm mounting diameter, it offers three selectable positions with a stay-put type operator and a key lock of type Dom 8D1. The device supports high mechanical durability with up to 1,000,000 cycles, and is rated IP66, IP67, and IP69K for protection against dust, water, and high-pressure washing. Suitable for harsh environments, it complies with IEC standards and is certified for UL, CSA, and Lloyd's register. Its compact dimensions include an overall width and height of 1.46 in, depth of 2.83 in, and weighs approximately 0.15 lb. The switch is suitable for use in industrial control panels, automation systems, and equipment requiring reliable manual control with multiple positions.
Schneider Electric ZB5FG9D Selector Switch Head Specifications:
- Range of product: Harmony XB5
- Type: Device short name ZBS
- Bezel material: Dark grey plastic
- Mounting diameter: 1.18 in (30 mm)
- Head type: Built-in-flush
- Shape: Round
- Operator profile: Black key switch
- Operator position: 3 positions +/- 45°
- Type of keylock: Dom 8D1
- Key withdrawal position: Left
- CAD overall width: 1.46 in (37 mm)
- CAD overall height: 1.46 in (37 mm)
- CAD overall depth: 2.83 in (72 mm)
- Net weight: 0.15 lb (0.069 kg)
- Mechanical durability: 1,000,000 cycles
- Environmental protection: IP66, IP67, IP69K
- Protection degrees: NEMA 13, NEMA 4X
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, 0.1 m distance
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (IEC 60068-2-27), 50 gn (IEC 60068-2-27)
- Standards: EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1
- Certifications: UL Listed, CSA, Lloyd's register, BV, DNV, RINA
- Temperature range: -40°C to +70°C for storage and operation
Buy the Schneider Electric Series XB5 Selector Switch: ZB5FG9D
Purchase the Schneider Electric Series XB5 selector switch head ZB5FG9D online and experience dependable operation in demanding industrial environments. This high-quality device offers durability up to a million cycles, IP69K protection for washdown applications, and versatile three-position control with a key lock. Its compact round profile fits neatly into control panels, making installation straightforward. Whether for automation, machinery, or equipment requiring robust manual operation, buying online guarantees quick delivery and quality assurance for your critical automation and control projects.
Order your Schneider Electric Series XB5 ZB5FG9D selector switch head today and ensure reliable manual control with high environmental protection.
