Schneider Electric ZB5FV033 Pilot Light Head

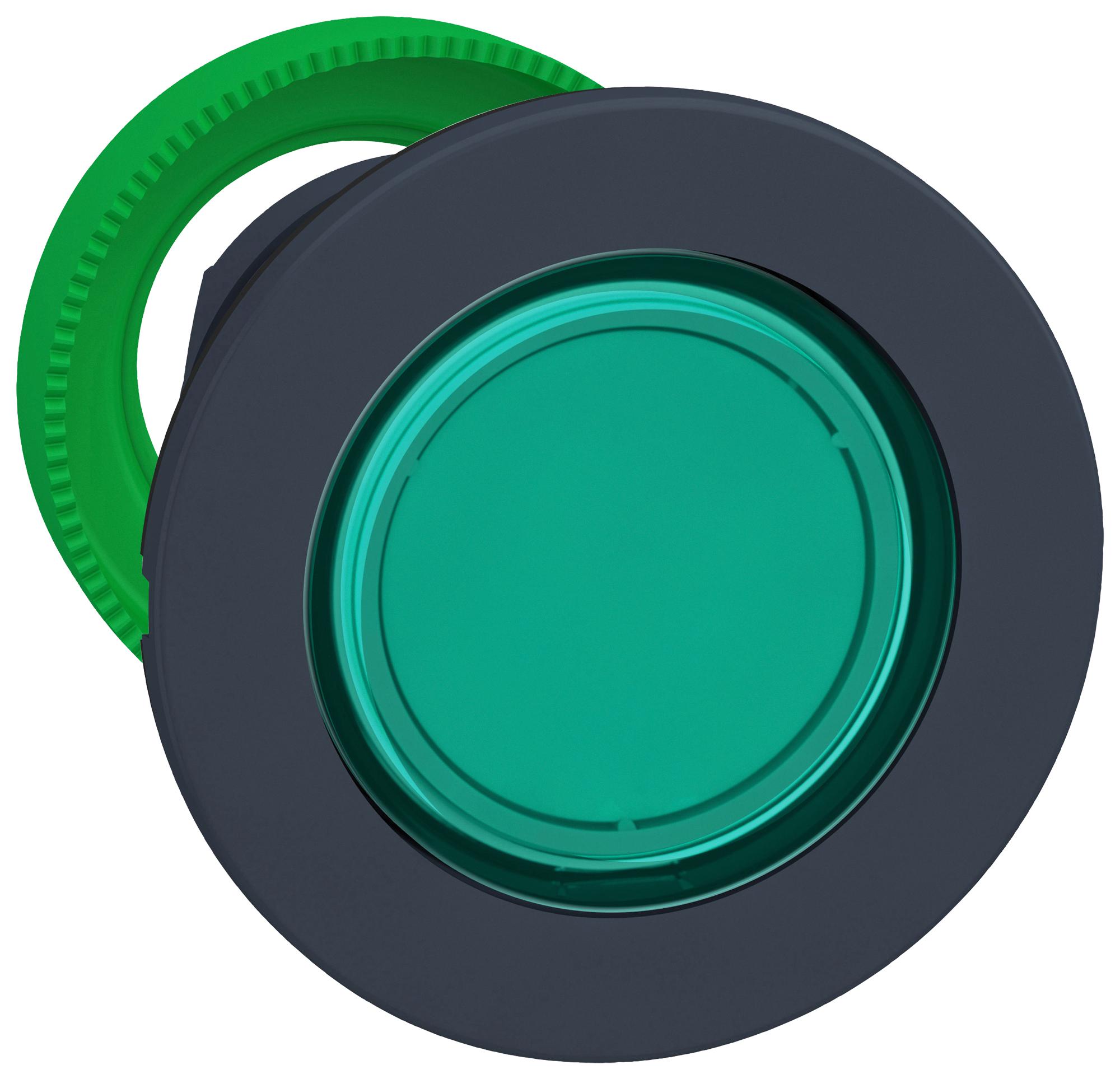

The ZB5FV033 is a flush-mounted green pilot light head designed for integral LED applications. It features a round shape with a 30 mm mounting diameter and a bezel made of dark grey plastic. The device is suitable for various environments with an IP66/IP67/IP69/IP69K protection rating and NEMA 13/NEMA 4X protection classifications. It supports high resistance to pressure washing, vibration, and shocks, making it ideal for industrial settings. Compatible with multiple electrical compositions, including front mounting LED options, it ensures reliable signaling performance under harsh conditions.
Schneider Electric ZB5FV033 Pilot Light Head Specifications:
- Shape: Round
- Mounting Diameter: 1.18 inches (30 mm)
- Overall Width: 1.46 inches (37 mm)
- Overall Height: 1.46 inches (37 mm)
- Overall Depth: 1.18 inches (30 mm)
- Bezel Material: Dark grey plastic
- Net Weight: 0.03 Ib (0.015 kg)
- Electrical Composition Codes: P1, P2, PF1 front mounting integral LED
- Protection Ratings: IP66, IP67, IP69, IP69K
- NEMA Ratings: NEMA 13, NEMA 4X
- Environmental Temp: -40°F to 158°F (-40°C to 70°C)
- Vibration Resistance: 5 gn (2...500 Hz)
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, JIS C8201-5-1
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
Buy the Schneider Electric ZB5FV033 – Reliable Signaling Head for Industrial Applications
Enhance your industrial signaling systems with the Schneider Electric Pilot Light Head. Featuring IP66/IP69K protection, high resistance to shocks and vibration, and compatible with integral LED modules, this round signaling head ensures clear visibility and reliable operation in tough environments. Its compact design with a 30 mm mounting diameter makes it easy to install for various control panels, offering durable, long-lasting performance for safety and process control applications. Order online today for quick, secure delivery and seamless integration into your automation systems.
Buy Schneider Electric ZB5FV033 now and experience unmatched durability and reliable signaling performance in demanding industrial environments.
