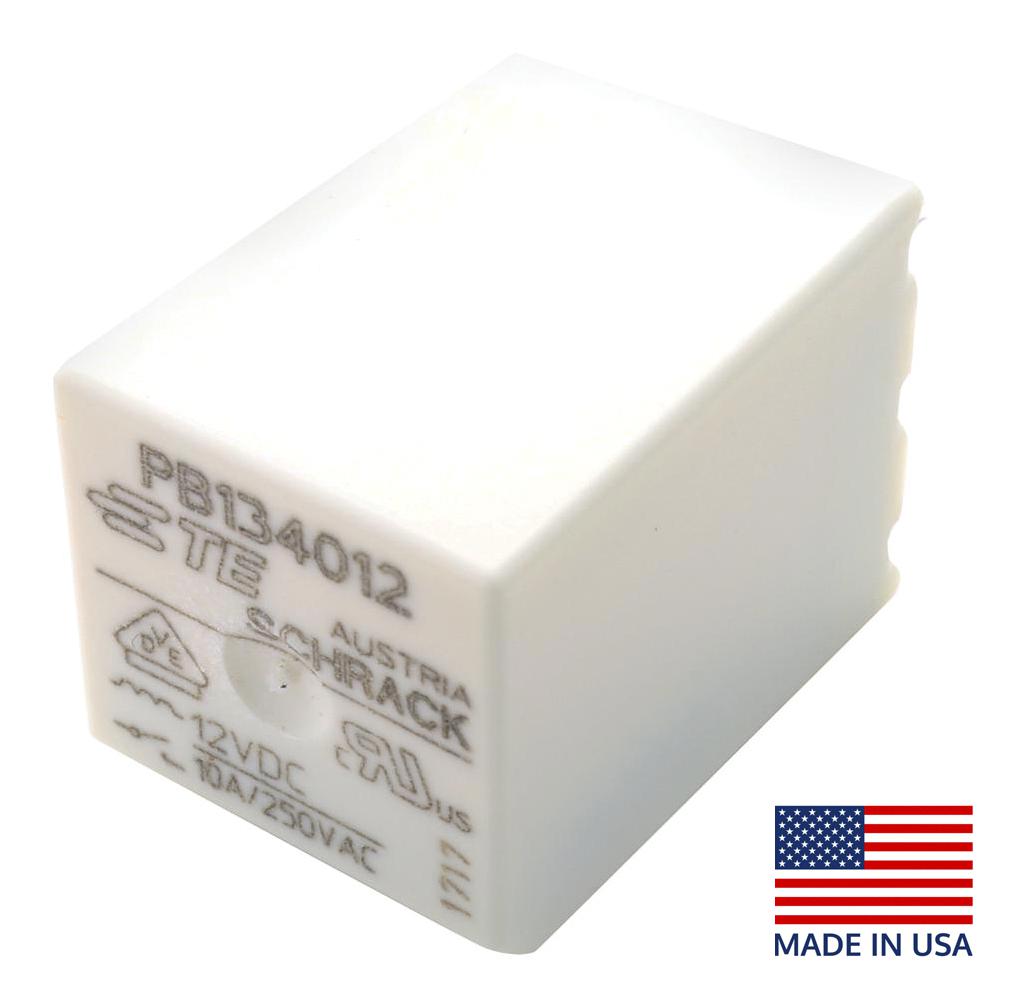

SCHRACK - TE CONNECTIVITY PB134012 Miniature Power PCB Relay
The miniature power PCB relay is a reliable mechanical component designed for general-purpose applications, including white goods, small home appliances, and heating controllers. It features environmentally-friendly cadmium-free contacts, a compact design for high process security, and standard Class F coil system. Suitable for switching voltages up to 250VAC and currents of 10A, it offers high endurance, quick operation, and meets IEC 60335-1 safety standards. Ideal for PCB mounting and automation tasks, it ensures durability and safety in various electronic control environments.
SCHRACK - TE CONNECTIVITY PB134012 Miniature Power PCB Relay Specifications:
- Contact Arrangement: 4 form C (CO) or 4 form A (NO)
- Contact Material: AgNi 90/10, AgSnO
- Rated Voltage: 250VAC
- Max Switching Voltage: 250VAC
- Rated Current: 10A
- Coil Voltage Range: 5 to 48 VDC
- Coil Power: 360mW, 500mW options available
- Operate/Release Time: Max. 10/20 ms
- Dielectric Strength: 1000 Vrms between open contacts, 2500 Vrms between contact and coil
- Insulation: Tracking index PTI 250, fully covered PCB terminals
- Ambient Temperature: -40°C to +85°C
- Vibration Resistance: >10/6 g depending on version
- Shock Resistance: >100 g
- Dimensions: Approximate height 15 mm, with fully soldered THT terminals
- Resistance to Soldering Heat: IEC 60088-2-20 270°C/10s
- Environmental Protection: IEC 61810 RTII, flux-proof
Buy the Schrack PB Miniature Power PCB Relay – Reliable Switching for Industrial Applications
Enhance your electronic control systems with this high-quality miniature power PCB relay. Designed for reliability and safety, it features environmentally-friendly cadmium-free contacts and high endurance rated for 10A switching at 250VAC. Its compact form factor ensures easy PCB mounting and quick installation. Suitable for various automation and appliance applications, it supports a broad temperature range of -40°C to +85°C. Purchase online now to secure durable and safe switching solutions for your industrial needs.
Order your Schrack Series PB PCB Relay today and ensure dependable operation in your industrial control projects with high safety and durability.
