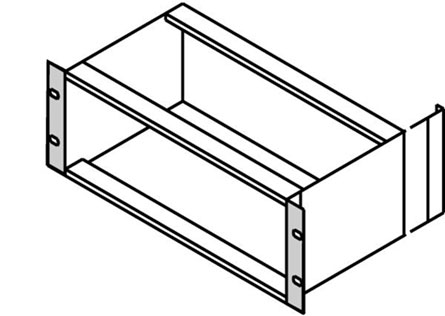

SCHROFF 24560197 EuropacPRO Subrack System
SCHROFF EuropacPRO subracks are designed to provide a robust and flexible framework for electronic systems. They are suitable for a wide range of applications, including CompactPCI and VME64x systems, and offer a modular design that allows for customization to meet specific needs. Features include quick optical positioning aids, ESD protection, and the ability to retrofit EMC shielding. The system supports various mounting options and is available in different sizes and configurations to accommodate diverse hardware requirements. ServicePLUS configuration options allow for individual customization and assembly.
SCHROFF 24560197 EuropacPRO Subrack System Specifications:
- Standards/Certifications: IEC 60297-3-100, -101, - 102, -103, -104, -105, IEEE 1101.1, IEEE 1101.10/11, IEC 60529, IEC 61587-3, BN 411002, BN 411003, NF F 60002, NF F 67012, IEC 61587-2, EN 50155, KTA 1401
- Type of Protection: IP 20
- Shock and Vibration: Resistant up to 5 g
- Configuration: Kits or individual configuration
- Application: Suitable for CompactPCI and VME64x insertion and extractor handles
- EMC Shielding: Can be retrofitted
- Guide Rails: Different horizontal rails for various applications
- Load Capacity: Up to 7.5 kg, up to 11 kg, up to 15 kg
- Material: Aluminum, 2 mm passivated
- Depth D: 175 mm
- Depth D1: 175/235/295 mm
- Depth D2: 160/220/280 mm
- Kit Components: Side panels, front/rear horizontal rails, threaded inserts, insulation strip, fixing material kit, user manual
