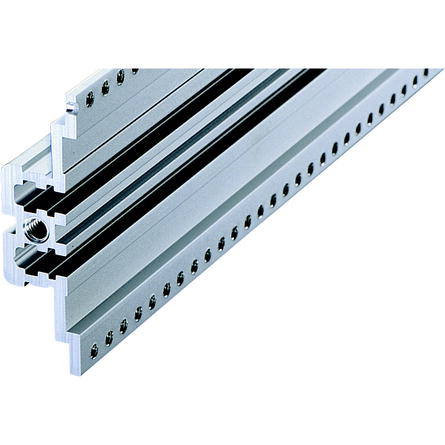

SCHROFF 34561242 Rugged Shielded Subrack
The SCHROFF EuropacPRO Rugged subrack is a versatile solution for industrial applications requiring a high level of protection and flexibility. Its rugged design provides resistance to shock and vibration, while the integrated shielding ensures electromagnetic compatibility. The subrack supports CompactPCI and VMEbus insertion and can be customized with various accessories, including guide rails and EMC shielding materials. It's ideal for use in mobile railway applications and other environments where reliability and performance are critical.
SCHROFF 34561242 Rugged Shielded Subrack Specifications:
- Standards Approvals: IEC 60297-3-100, -101, - 102, -103, -104, -105, IEEE 1101.1, IEEE 1101.10/11, IEC 60529, IEC 61587-3, MIL 167, IEC 61587 DL 3, MIL 810 G, MIL 901
- Type of Protection: IP 20
- Shock and Vibration Resistance: Up to 25 g
- Shielding: Typically 40 dB at 1 GHz, 30 dB at 2 GHz (as per VG 95373, part 15)
- Material: Aluminum, 3 mm
- Depth D: 295 mm
- Depth D1: 175 mm
- Depth D2: 160 mm
- Fixing: 3 hole fixing for increased stability (+60 % compared to 2 hole fixing)
- Delivery Comprises: Side panel, front handle, rear corner profile, front horizontal rail, rear horizontal rail, threaded insert, perforated strip, insulation strip, EMC cover plate, EMC rear panel, EMC gasketing material
- Part Number 3U: 24567-149
- Part Number 6U: 24567-449
- Guide Rails: 24560-351
- Torx Screw: 24560-141
- ESD Clip: 24560-255
- Heavy PCB Guide Rail: 34562-881
- Torx Pan Head Screw: 24560-157
- CCA Adaptor (VPX): 24566-004
- CCA Adaptor (CompactPCI): 24566-005
- Dual Fixing Materials Kit: 24566-109
