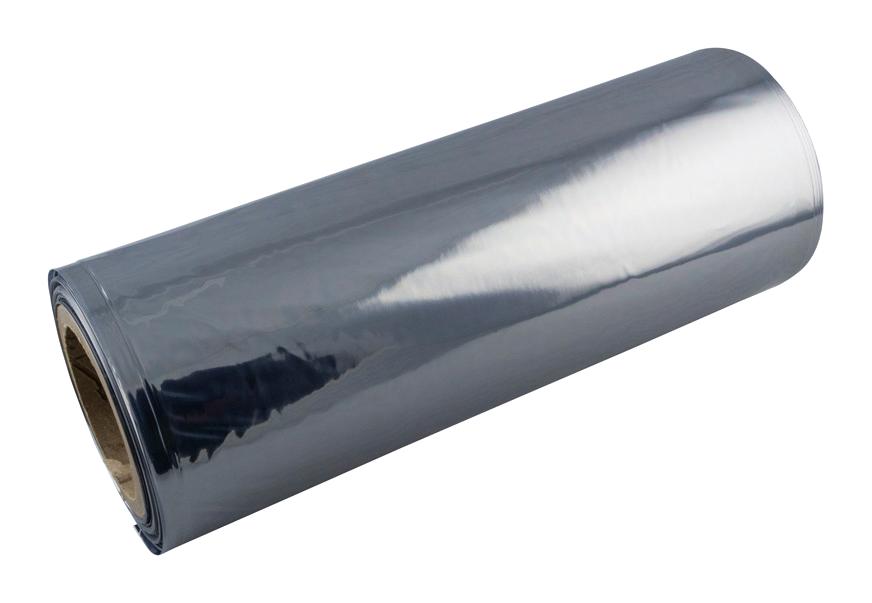

SCS 1000V12X500 Static Shielding Tubing
This 1000V series static shielding tubing provides a reliable static-safe environment for electrostatic-sensitive electronic components. Made from a polyester-metal-polyethylene laminate, the tubing features a polyester dielectric layer combined with a metal shield for effective discharge shielding. The exterior is static dissipative, enabling electrostatic charges to be safely grounded and neutralized. It is heat sealable for secure packaging, offering durability and protection during handling and transport. Suitable for sensitive electronics, this tubing meets ANSI/ESD standards, ensuring compliance for static control in electronic manufacturing and repair environments.
SCS 1000V12X500 Static Shielding Tubing Specifications:
- Material: Polyester, metal, polyethylene laminate
- Dielectric: Polyester with metal layer for discharge shielding
- Exterior Surface Resistance: Static dissipative, < 1x10^11 ohms
- Interior Surface Resistance: < 1x10^10 ohms
- Thickness: 2.8 mils, 0.071 mm ±10%
- Tensile Strength: 4600 PSI, 32 MPa
- Puncture Resistance: 12 lbs, 53 N
- Temperature Resistance: 300°F – 375°F, 149°C – 190°C
- Roll Sizes Available: 6 x 750 in, 8 x 750 in, 12 x 500 in
- Tolerance: Width + 1/8 inch; Length + 10%
- Static Decay Time: Less than 2 seconds
- Compliance: Meets ANSI/ESD S20.20 and ANSI/ESD S541 standards
- RoHS, REACH, Conflict Minerals Compliant
- Made in the United States
Buy the Buy Static Shielding Tubing Part Number 1000V12X500 Online
Experience premium static protection with our 1000V series static shielding tubing, designed for electronic components requiring ESD safety. Crafted from a durable laminate of polyester, metal, and polyethylene, this transparent tubing offers discharge shielding and static dissipative exterior for safe grounding. Heat sealable for secure packaging, it meets ANSI/ESD standards for static control. Ideal for electronics manufacturing, repair, or handling environments, this tubing ensures electrostatic charges are safely neutralized, preventing damage and contamination during transit and storage. Available in multiple sizes for versatile applications.
Get Static Shielding Tubing 1000V12X500 today—optimized for static protection and durable packaging solutions.
Frequently Asked Questions
Where can I buy SCS 1000V12X500?
You can click on the BUY or RFQ button to purchase 1000V12X500 from an authorized SCS distributor.
How do I troubleshoot issues or seek technical support for part 1000V12X500?
You can download the 1000V12X500 datasheet or visit the SCS website for support.
Who is the manufacturer of 1000V12X500?
SCS
