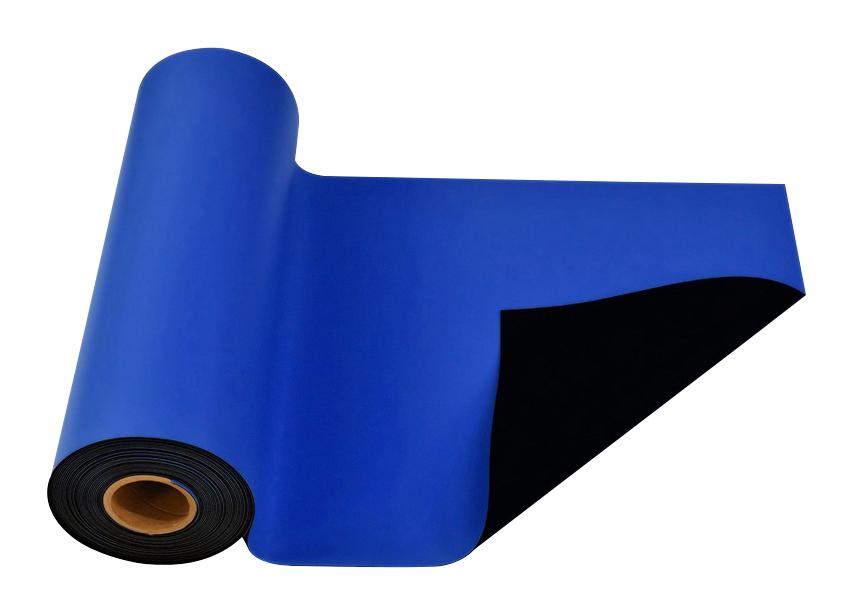

SCS 770092 Dissipative Rubber Mat
The R3 Dissipative Rubber Worksurface Mat offers an effective static dissipative surface suitable for electronics assembly and testing environments. Made from a two-layer rubber with a colored top and conductive black bottom, it meets ANSI/ESD S20.20 standards and handles resistant solvents and soldering exposure. Available in various colors and sizes, the mat ensures electrical safety with resistance levels from 1x10^8 to less than 1x10^9 ohms. Proper grounding and regular cleaning with ESD-approved cleaners maximize performance. The mat's durable construction supports long-term use in sensitive environments.
SCS 770092 Dissipative Rubber Mat Specifications:
- Material: Rubber, two-layer composition with static dissipative top and conductive bottom
- Thickness: 0.063 inches (1.6 mm) ±0.005 inches
- Resistance: 1x10^8 to < 1x10^9 ohms
- Surface to Ground resistance: 1x10^6 to < 1x10^9 ohms
- Color options: Green/Black, Light Blue/Black, Gray/Black, Dark Blue/Black
- Hardness: 65 ±5 Shore 'A'
- Mat kit width: ±0.250 inches; length: ±1 inch
- Roll width: ±0.250 inches; length: ±2 inches
- Standards: ANSI/ESD S4.1, ESD TR53, ASTM-D2240
- Operating temperature and environmental resistance: Suitable for soldering and solvent exposure
Buy the SCS Series Dissipative Rubber Mat Static Control Part Number 770092
Purchase the Dissipative Rubber Worksurface Mat online today for a trusted static control solution tailored for electronics assembly, testing, and repair environments. Engineered with a two-layer rubber design, it offers excellent resistance to solvents, soldering irons, and static discharge, ensuring safety and compliance with ANSI/ESD standards. Available in multiple sizes and colors, it enhances workspace efficiency and safety. Proper grounding and regular cleaning maintain its optimal performance. Secure your workspace with this durable, reliable dissipative mat—order now for quick shipping and exceptional quality.
Get Desco Dissipative Rubber Worksurface Mat today—designed for reliable static protection and long-lasting durability in electronics manufacturing environments.
