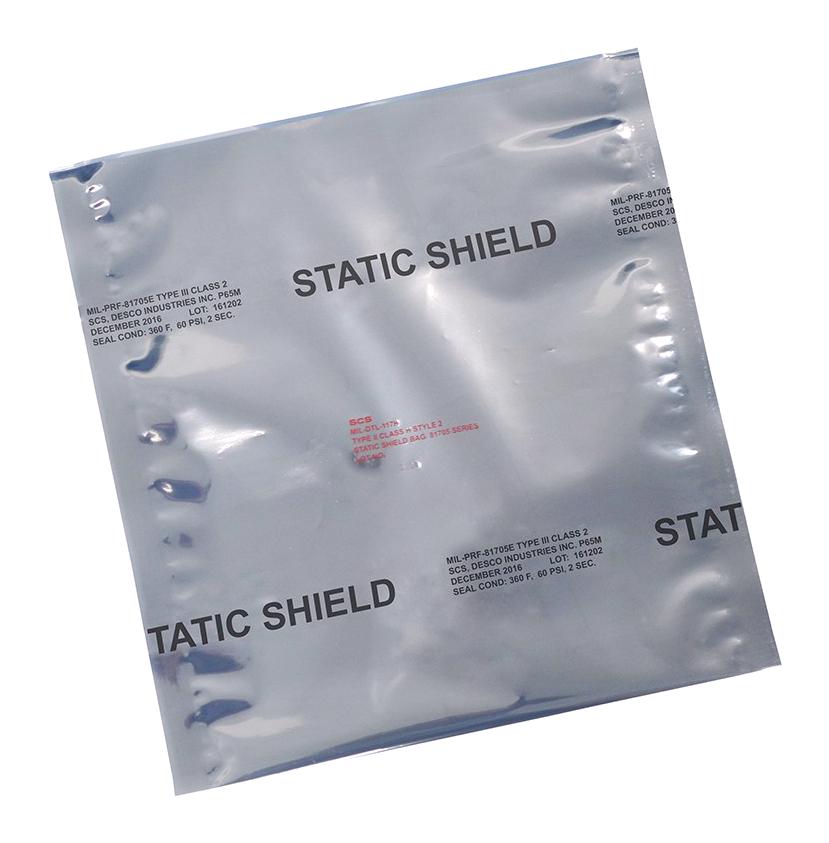

SCS 81722520 Static Shield Bag
SCS Static Shield Bags, part number 8172.2520, provide robust electrostatic discharge (ESD) shielding for sensitive electronic components. Constructed from four layers – a static dissipative coating, polyester, metal, and polyethylene laminate – these bags offer excellent protection against electrostatic damage. They are qualified to MIL-PRF-81705E Type III, Class 2, ensuring compliance with stringent military standards. The bags are designed to allow electrostatic charges to be removed when grounded, and the exterior is static dissipative. They are commonly used in electronics manufacturing, aerospace, and other industries where ESD control is critical. Custom conversion to meet specific packaging requirements is also available.
SCS 81722520 Static Shield Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa
- Puncture Resistance: 12 lbs, 53 N
- Seam Strength: Pass
- Thickness: 2.8 mils, 0.071 mm +/-10%
- Marking Abrasion Resistance: Pass
- Contact Corrosivity: Pass
- Transparency: 40%
- EMI Attenuation: ≥ 10 db
- ESD Shielding: ≤ 10 nJ
- Surface Resistivity - Interior: < 1 x 10 [12] ohms/sq
- Surface Resistivity - Exterior: ≥ 1 x 10 [5] to < 1 x 10 [12] ohms/sq
- Static Decay: ≤ 2 seconds
- Heat Sealing Temperature: 360°F, 182ºC
- Heat Sealing Time: 2 seconds
- Heat Sealing Pressure: 60 PSI, 414 KPa
- Material: Four-layer laminate (static dissipative coating, polyester, metal, polyethylene)
- Color: Red (default)
