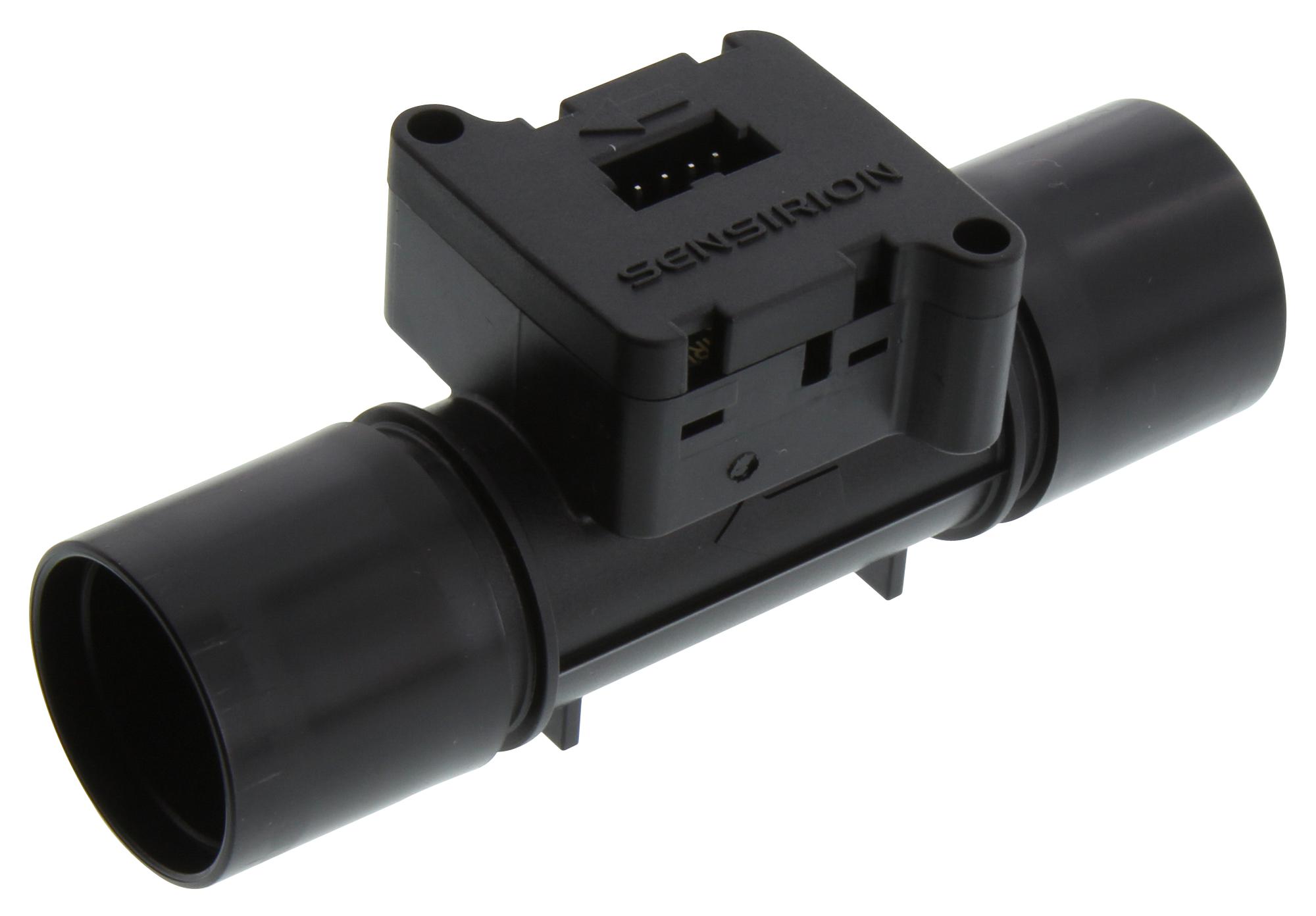

SENSIRION SFM3020 Mass Flow Sensor
The SFM3020 is a compact, highly reliable analog mass flow meter designed for medical ventilators and high flow applications. Using CMOSens® technology, it offers accurate measurements over a range of -10 to 160 slm, supporting both bidirectional and unidirectional flows with minimal pressure drop achieved through inlet mesh design. Its features include excellent signal-to-noise ratio, stability, and scalability for mass production, making it ideal for medical, industrial, and automation applications requiring precise flow measurement and robust performance.
SENSIRION SFM3020 Mass Flow Sensor Specifications:
- Measurement range: -10 to 160 slm for air and O2
- Flow accuracy: ±2% of span (0...160 slm), ±4.3% of span at lower range
- Zero point: 0.05 slm typical
- Repeatability: 1% mv.
- Output voltage noise: 0.05 mV
- Flow step response time: <5 ms
- Pressure drop: <0.32 Pa at 60 sIm, <2.0 Pa at 200 sIm
- Supply voltage: 5 V (±5%)
- Supply current: 5.5 mA
- Operating pressure range: 0 to 1.3 bar absolute
- Overpressure: -0.2 to 0.2 bar gauge
- Burst pressure: >41 bar gauge
- Materials: PPE+PS blend, Si, glass, gold, copper alloy, stainless steel
- Dimensions: Approximate weight 10 g, pin pitch 2 mm
- Operating temperature: 0°C to +60°C
- Storage temperature: -20°C to +70°C
- Standards: RoHS, REACH compliant
Buy the Sensirion SFM3020 – Reliable Flow Meter for Industrial Applications
Purchase the Sensirion SFM3020 series mass flow sensor online today and benefit from its high reliability, precise flow measurement, and robust build suited for medical ventilators and industrial systems. Its CMOSens® technology guarantees excellent signal-to-noise ratio, stability, and scalability for mass production. Designed to operate accurately across a range of -10 to 160 slm, with minimal pressure drop, this sensor ensures optimal performance even in demanding environments. Invest in quality and get fast, secure delivery directly from our online store.
Order your Sensirion SFM3020 series high-accuracy flow sensor today and ensure precise flow measurement in your medical or industrial projects.
Frequently Asked Questions
Where can I buy SENSIRION SFM3020?
You can click on the BUY or RFQ button to purchase SFM3020 from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SFM3020?
You can download the SFM3020 datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SFM3020?
SENSIRION
