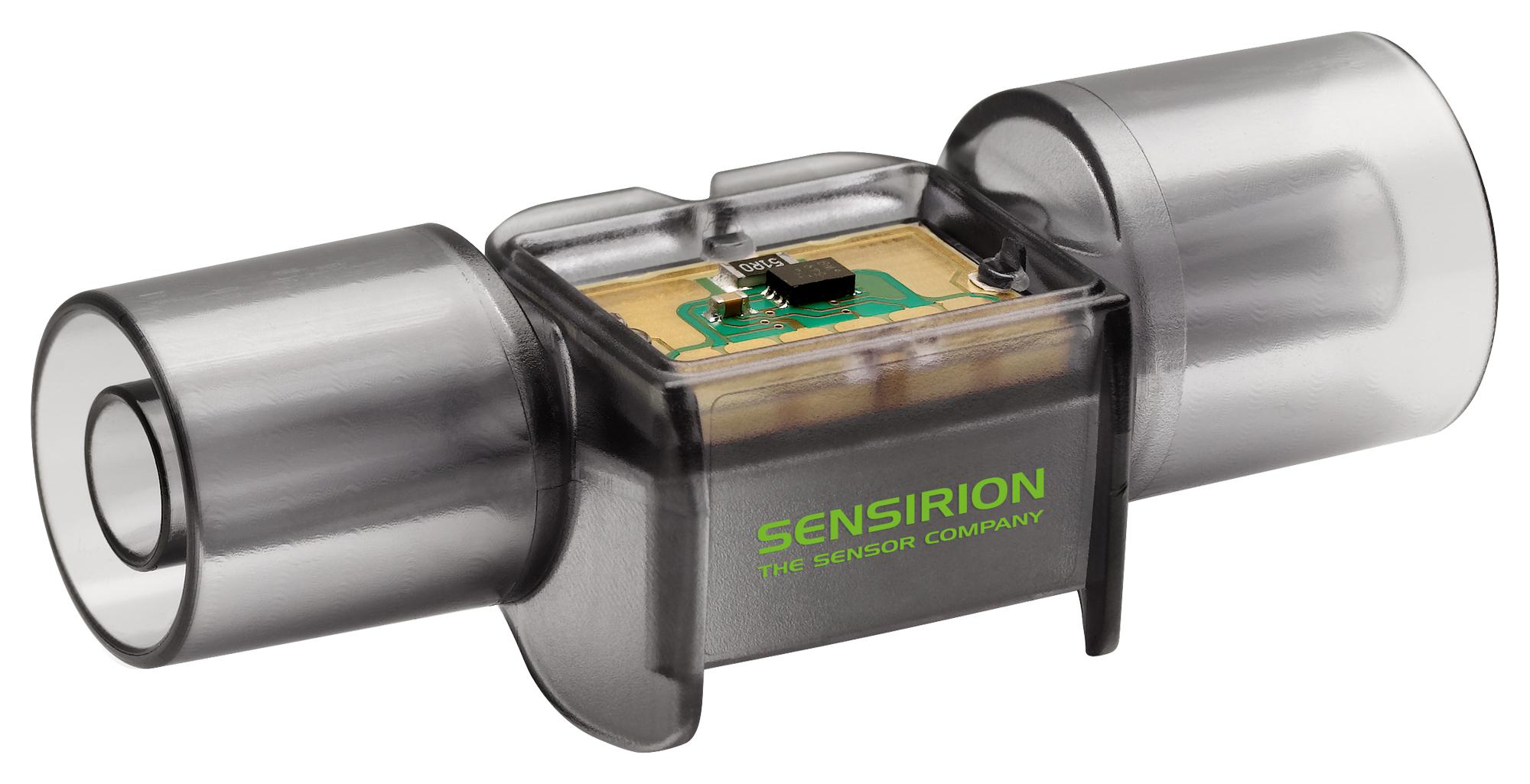

SENSIRION SFM340033D Medical Flow Sensor
The SFM3400 series is a highly accurate digital flow meter designed for neonatal and pediatric medical applications. It measures air, oxygen, and non-aggressive gases with very small dead space (<1ml) and fast update times (0.5ms). The re-use version withstands autoclaving, ideal for respiratory monitoring and ventilation in infants. Its CMOSens® technology ensures robustness, reliability, and precise flow measurements suitable for critical healthcare environments. OEM customization options are available for high-volume applications, making it a versatile solution for medical ventilation and anesthesia.
SENSIRION SFM340033D Medical Flow Sensor Specifications:
- Flow Range: ±33 slm (bidirectional)
- Dead Space: <1 ml (typical)
- Update Time: 0.5 ms
- Accuracy: ±4% span below 33 slm, with offset +0.02
- Operating Temperature Range: +5°C to +50°C
- Storage Temperature Range: -40°C to +70°C
- Pressure Range: 0.54 to 1.1 bar absolute
- Media Compatibility: Air, oxygen, non-aggressive gases
- Wetted Materials: Si, SiN4, SiOx, gold, PPSU, silicone
- Dimensions: Length 60 mm, diameter 3.5 mm, dead space ~0.9 ml
- Weight: approx. 7.5 g (without connector)
- Electrical Supply: 5 V ±5%, power <50 mW
- Interface: I2C, 14-bit resolution, update time 0.5 ms
- Medical connectors: ISO 5356-1 standard, 15 mm cones and sockets
- Calibration: Digital temperature compensation, no external heater required
Buy the Sensirion SFM3400 – Reliable Medical Flow Meter for Neonatal Applications
Enhance neonatal and pediatric respiratory systems with the Sensirion SFM3400, a precise, robust, and easy-to-integrate medical flow sensor. Designed for critical healthcare environments, it offers small dead space, fast updates, and compatibility with standard connectors. Its ability to withstand autoclaving makes it suitable for repeated sterilization, ensuring long-term reliability. Ideal for ventilation and anesthesia in infants, this sensor improves measurement accuracy, reduces dead space, and supports OEM customization, providing healthcare professionals with a high-quality solution for respiratory monitoring and metabolic measurements.
Buy Sensirion SFM3400 now and experience unmatched accuracy and durability for neonatal and pediatric respiratory monitoring.
Frequently Asked Questions
Where can I buy SENSIRION SFM340033D?
You can click on the BUY or RFQ button to purchase SFM340033D from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SFM340033D?
You can download the SFM340033D datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SFM340033D?
SENSIRION
