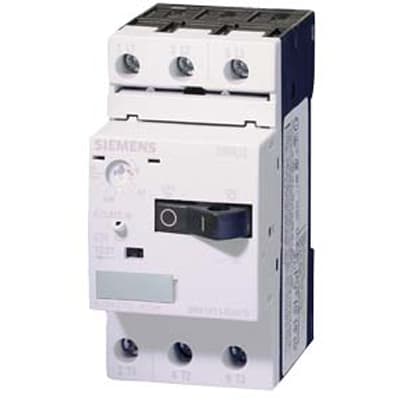

SIEMENS ENERGY 3RV10111JA10 Motor Protection Circuit Breaker
The Siemens 3RV1011-1JA10 is a compact circuit breaker specifically engineered for motor protection applications. This S00 size breaker offers overload and phase disturbance recognition, ensuring reliable protection against motor faults. With an adjustable response current of 7 to 10 Amps and a trip class of 10, it provides precise control and protection for various motor types. The breaker's robust design includes screw-type terminals for secure connections and supports both solid and stranded conductors. It is suitable for industrial machinery, pumps, fans, and other motor-driven equipment where reliable protection and control are essential.
SIEMENS ENERGY 3RV10111JA10 Motor Protection Circuit Breaker Specifications:
- product_brand_name: SIRIUS
- size_of_the_circuit_breaker: S00
- number_of_poles: 3
- adjustable_response_current: 7 … 10 A
- operating_voltage: 690 V
- service_power_at_ac_3: 4 kW
- operating_current_at_ac_3: 10 A
- impulse_voltage_resistance: 6,000 V
- protection_class_ip: IP20
- installation_altitude: 2,000 m
- resistance_against_shock: 25g / 11 ms
- ambient_temperature_during_transport: -50 … +80 °C
- ambient_temperature_during_storage: -50 … +80 °C
- ambient_temperature_during_operating: -20 … +60 °C
- active_power_loss_total: 7 W
- mechanical_operating_cycles: 100,000
- frequency_of_operation: 1/h
- trip_class: CLASS 10
- mounting_type: screw and snap-on mounting onto 35 mm standard mounting rail
- depth: 81 mm
- height: 90 mm
- width: 45 mm
- connectable_conductor_cross_section_solid: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
- connectable_conductor_cross_section_stranded: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
- connectable_conductor_cross_section_awg: 2x (18 ... 14)
Buy the 3RV1011-1JA10 SIEMENS ENERGY Motor Protection Circuit Breaker | myMectronic
Purchase the genuine Siemens 3RV1011-1JA10 circuit breaker securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy SIEMENS ENERGY 3RV10111JA10?
You can click on the BUY or RFQ button to purchase 3RV10111JA10 from an authorized SIEMENS ENERGY distributor.
How do I troubleshoot issues or seek technical support for part 3RV10111JA10?
You can download the 3RV10111JA10 datasheet or visit the SIEMENS ENERGY website for support.
Who is the manufacturer of 3RV10111JA10?
SIEMENS ENERGY
