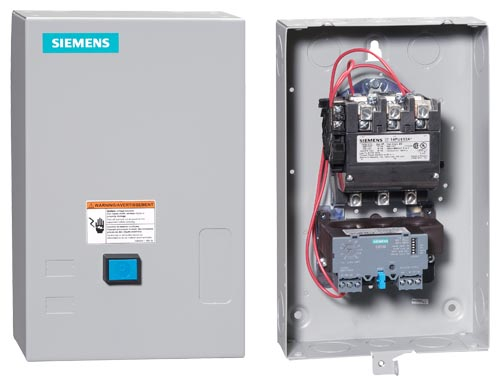

SIEMENS 14FUG12BA Motor Starter
This Siemens US2:14FUG12BA is a size 2 non-reversing motor starter designed for single-phase full voltage operation. It features a solid-state overload relay with a current range of 25 to 100 amps, suitable for indoor general-purpose use. The starter is equipped with a coil voltage of 110/120 or 220/240 VAC at 60 Hz, and it comes with a standard width enclosure of Type 1 for indoor applications. It is a non-combination type device suitable for controlling motor operations in various industrial settings.
SIEMENS 14FUG12BA Motor Starter Specifications:
- Weight: 13 lb
- Dimensions: 14x8x7 inches
- Protection: Type 1 indoor enclosure
- Protection against electrical shock: NA for enclosed products
- Installation altitude: up to 6560 ft
- Ambient storage temperature: -22 to +149 °F
- Ambient operating temperature: -20 to 40°C
- Motor ratings: 3 hp at 115 V, 7.5 hp at 200/208 V and 220/230 V
- Main contacts: 2 NO, rated at 45A, 10 million switching cycles
- Auxiliary contacts: 7 NC and 10 NO, rated at 5A@600VAC and 1A@250VDC
- Control coil voltage: 110/120 VAC, 220/240 VAC, 60Hz
- Coil power: 8.6 W, apparent power: 218 V-A
- Overload relay: Trip class 5/10/20/30, Adjustable pick-up 25-100A, Trip time max 3s at phase-loss
- Short-circuit capacity: 10kA at 600V, 14kA at 240V, 10kA at 480V
- Mounting: Surface, vertical, with box lug terminals
- Conductor capacity: 14-2 AWG for line, 12-20 AWG for auxiliaries
- Material: Aluminum or copper, screw-type terminals, 75°C rated
- Insulation voltage: 600 V for main contacts, 300 V for auxiliaries
- Certifications: UL and CSA listed
- External reset: Yes
Buy the Siemens US2:14FUG12BA – Reliable Motor Starter for Industrial Applications
Order the Siemens US2:14FUG12BA motor starter online today and benefit from industry-leading durability and performance. Designed for single-phase operation, it comes with a solid-state overload relay and robust enclosure, ensuring safe and efficient motor control in industrial environments. Perfect for indoor applications, this size 2 starter offers easy mounting, reliable switching cycles, and adjustable overload protection. Simplify your automation setup and ensure long-term operational stability by purchasing this high-quality motor starter from authorized distributors now.
Buy Siemens US2:14FUG12BA now and experience unmatched reliability and performance in motor control for industrial applications.
Frequently Asked Questions
Where can I buy SIEMENS 14FUG12BA?
You can click on the BUY or RFQ button to purchase 14FUG12BA from an authorized SIEMENS distributor.
How do I troubleshoot issues or seek technical support for part 14FUG12BA?
You can download the 14FUG12BA datasheet or visit the SIEMENS website for support.
Who is the manufacturer of 14FUG12BA?
SIEMENS
