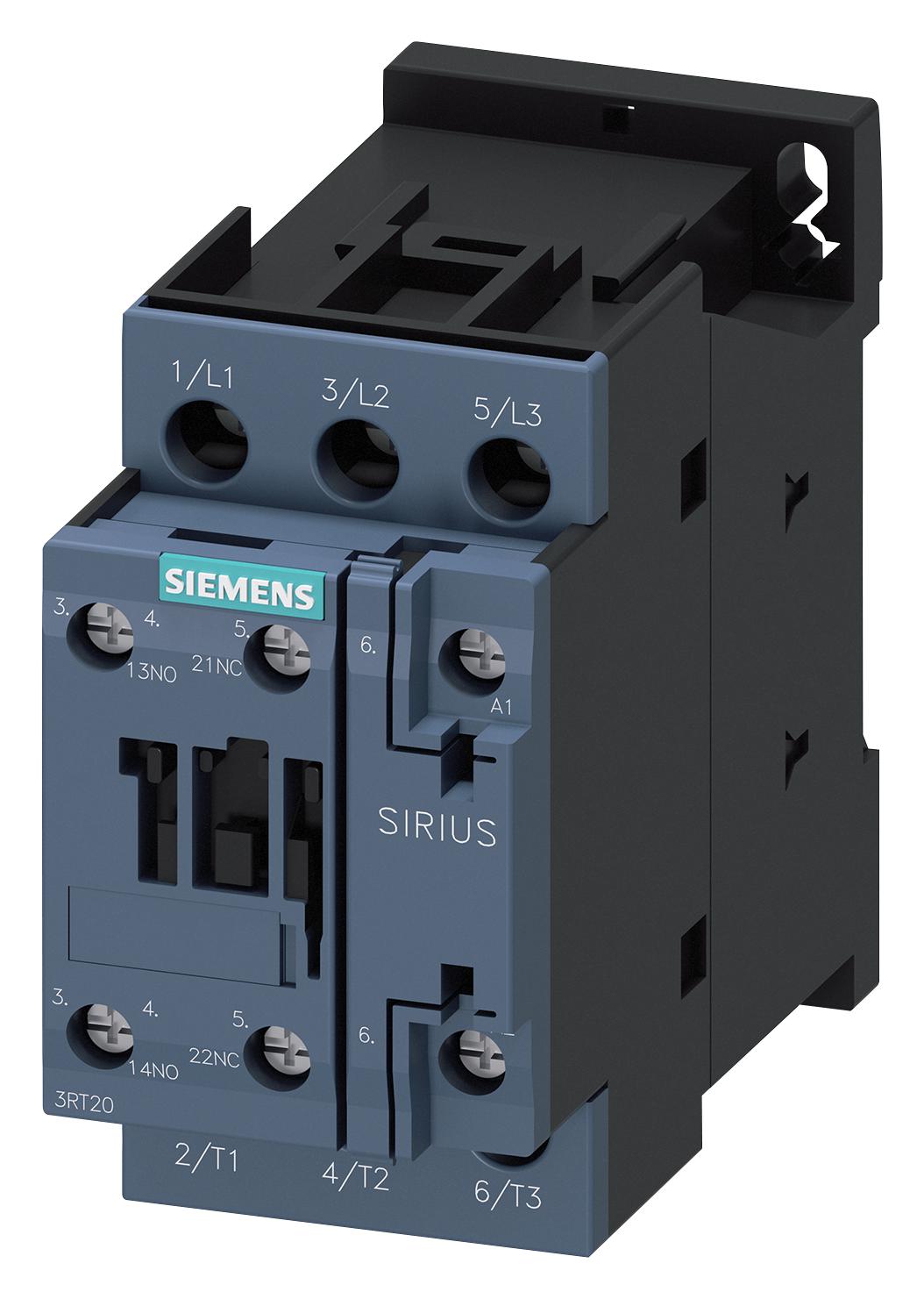

SIEMENS 3RT20241AP00 AC Power Contactor
The Siemens 3RT20241AP00 power contactor is a critical component in industrial automation and control systems. Designed for AC-3 duty, it provides reliable switching of power circuits up to 690V and 5.5kW. This contactor is ideal for applications such as motor starting, lighting control, and general power distribution. Its compact size and versatile mounting options make it suitable for a wide range of installations. The contactor's robust construction and high mechanical service life ensure long-term reliability in demanding environments. It is equipped with auxiliary contacts for monitoring and control purposes, enhancing system functionality and safety.
SIEMENS 3RT20241AP00 AC Power Contactor Specifications:
- Size of Contactor: S0
- Product Extension: No function module for communication
- Auxiliary Switch: Yes
- Insulation Voltage: 690 V
- Surge Voltage Resistance: 6 kV
- Maximum Permissible Voltage: 400 V
- Protection Class IP: IP20
- Shock Resistance at AC: 7.5g / 5 ms, 4.7g / 10 ms
- Shock Resistance with Sine Pulse: 11.8g / 5 ms, 7.4g / 10 ms
- Mechanical Service Life (Contactor): 10 000 000 cycles
- Mechanical Service Life (with Auxiliary Switch): 5 000 000 cycles
- Equipment Marking (DIN 40719): K
- Equipment Marking (DIN EN 61346-2): Q
- Installation Altitude: 2 000 m
- Ambient Temperature (Operation): -25 ... +60 °C
- Ambient Temperature (Storage): -55 ... +80 °C
- Number of Poles: 3
- Number of NO Contacts: 3
- Operating Voltage (AC-3): 690 V
- Operating Current (AC-1, 400V): 40 A
- Operating Current (AC-2, 400V): 12 A
- Operating Current (AC-3, 400V): 12 A
- Connectable Conductor Cross-Section: 10 mm²
- Operating Current (AC-4, 400V): 5.5 A
- DC Voltage (1 Path): 35 A @ 24V
- DC Voltage (2 Paths): 35 A @ 24V
- DC Voltage (3 Paths): 35 A @ 24V
- No-Load Switching Frequency: 5 000 1/h
- Control Voltage (AC): 230 V
- Closing Delay: 9 ... 38 ms
- Opening Delay: 4 ... 16 ms
- Arcing Time: 10 ... 10 ms
- Contact Reliability: 1 faulty switching per 100 million
- Full-Load Current (FLA, 480V): 11 A
- Yielded Mechanical Performance (hp, 230V): 2 hp
- Mounting Type: screw and snap-on mounting onto 35 mm standard mounting rail
