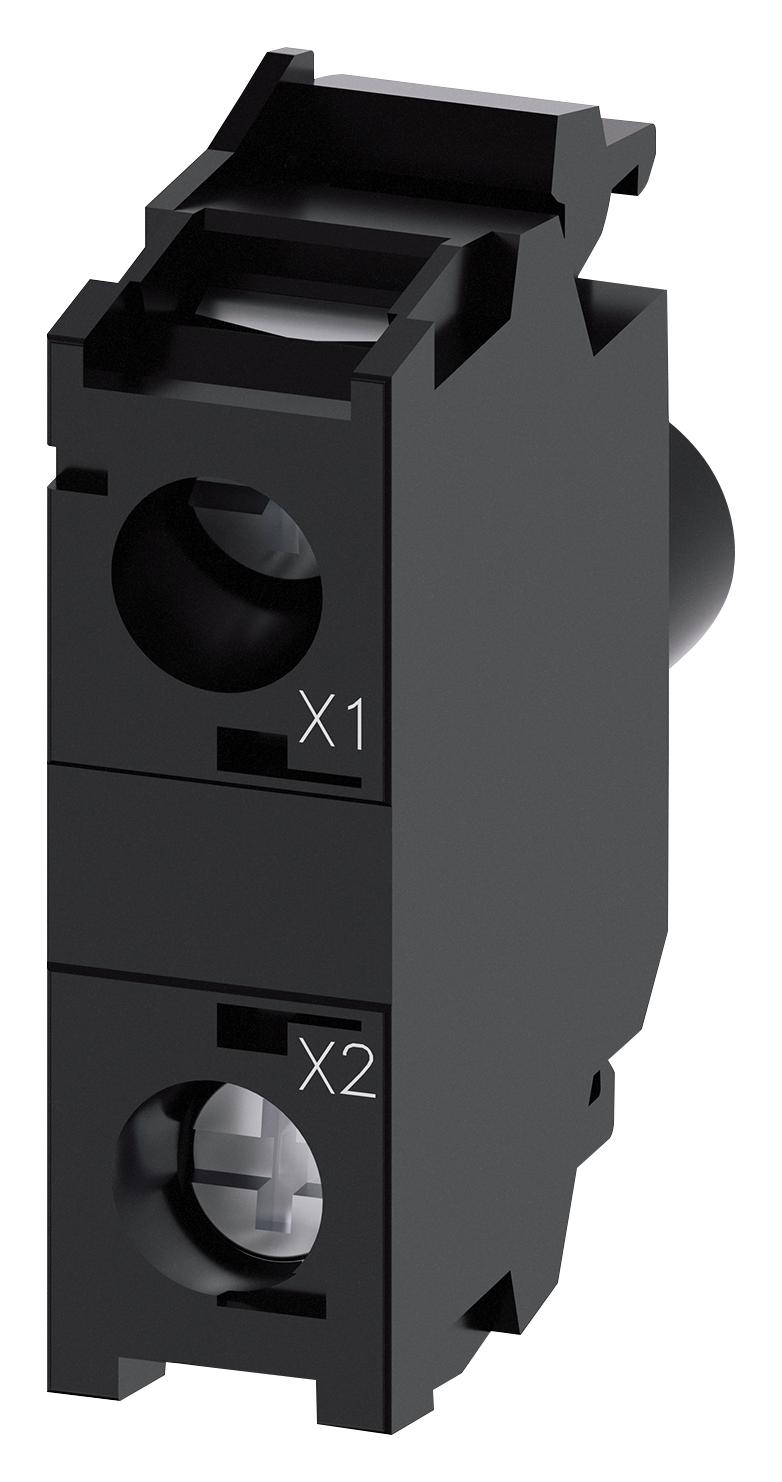

SIEMENS 3SU14011BG301AA0 LED Module
The Siemens LED module 3SU1401-1BG30-1AA0 is a reliable yellow LED light source operating at 6-24V AC/DC, designed for front plate mounting in industrial environments. It features integrated diode and resistor components, insulation voltage rated at 320V, and is resistant to surge voltages up to 4kV. The module offers a high service life of 100,000 hours, with protection class IP20, and withstands vibration and shock according to IEC standards. Compact and easy to install, it suits control panels and automation systems demanding durability and clear visibility.
SIEMENS 3SU14011BG301AA0 LED Module Specifications:
- Light source: LED with integrated diode and series resistor
- Operating voltage: 6-24V AC/DC with ±20% tolerance
- Surge voltage resistance: 4kV
- Rated insulation voltage: 320V
- Protection class: IP20
- Ambient temperature during operation: -25°C to +70°C
- Ambient temperature during storage: -40°C to 80°C
- Lighting color: Yellow
- Light intensity: 00 ... 1,400 mcd
- Mounting: Front plate mounting, dimensions: Height 33.2 mm, Width 9.8 mm, Depth 29.4 mm
- Electrical connections: Screw terminals for 0.5-1.5 mm² conductors, torque 0.8-0.9Nm
- Vibration resistance: 10-500 Hz at 5g, IEC 60068-2-6
- Shock resistance: 50g/11ms, IEC 60068-2-27
- Service life: Approximately 100,000 hours
- Certifications: UL, CSA, EAC, CCC
Buy the Siemens 3SU1401-1BG30-1AA0 – Reliable LED Module for Industrial Applications
Purchase the Siemens LED module 3SU1401-1BG30-1AA0 online today for reliable operation with a lifespan of 100,000 hours. Designed for front plate mounting, it features a yellow LED light source operating at 6-24V AC/DC, perfect for industrial control panels, automation systems, and signaling applications. Its compact size and robust construction ensure easy installation and long-lasting performance. With UL, CSA, and CE certifications, it guarantees safety and quality, making it an ideal choice for demanding industrial environments. Order now for quick delivery.
Get Siemens 3SU1401-1BG30-1AA0 today—built for precision, durability, and high visibility in industrial environments.
Frequently Asked Questions
Where can I buy SIEMENS 3SU14011BG301AA0?
You can click on the BUY or RFQ button to purchase 3SU14011BG301AA0 from an authorized SIEMENS distributor.
How do I troubleshoot issues or seek technical support for part 3SU14011BG301AA0?
You can download the 3SU14011BG301AA0 datasheet or visit the SIEMENS website for support.
Who is the manufacturer of 3SU14011BG301AA0?
SIEMENS
