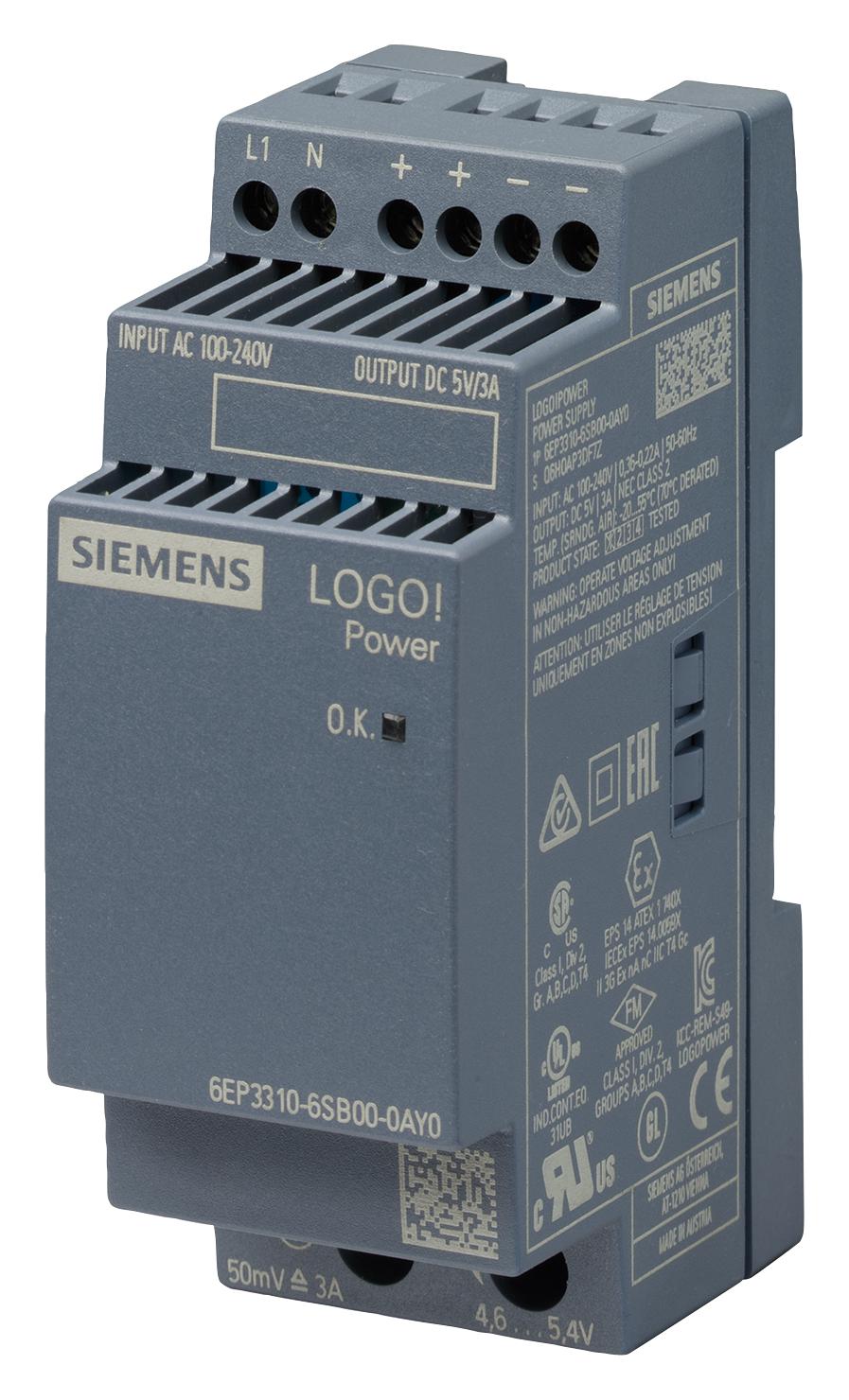

SIEMENS 6EP33106SB000AY0 Industrial Power Supply
The Siemens LOGO!POWER 5 V/3 A is a stabilized power supply designed for reliable operation in automation and control systems. It supports input voltages from 85 to 264 V AC or 110 to 300 V DC, with a wide-range input and mains buffering at rated output for at least 40 ms. The power supply provides a steady 5 V DC output with a maximum current of 3 A, featuring overvoltage protection, short-circuit proof, and energy-efficient performance with 76% efficiency. Compact and DIN rail mountable, it ensures safe, galvanic isolation suitable for industrial environments.
SIEMENS 6EP33106SB000AY0 Industrial Power Supply Specifications:
- Input Voltage Range: AC 85...264 V, DC 110...300 V
- Rated Voltage: 100...240 V AC, 5 V DC output
- Output Current: 3 A
- Efficiency: approx. 76%
- Protection Class: Class II (without protective conductor)
- Isolation: Galvanic isolation
- Protection: Overvoltage, short-circuit, and overload protection
- Operating Temperature: -25°C to +70°C, derating at higher temps
- Humidity: EN 60721 Class 3K3
- Dimensions: 36 mm width, 90 mm height, 53 mm depth
- Mounting: DIN rail EN 60715 35x15 or side mounting
- Weight: approximately 0.12 kg
- MTBF: 2,931,709 hours at 40°C
- Certifications: UL/cUL, cULus Listed, EN 55022 Class B
Buy the Buy Siemens Power Supply Part Number 6EP33106SB000AY0 Online
Purchase the Siemens industrial power supply model 6EP3310-6SB00-0AY0 online for dependable 5 V/3 A output. Designed for automation, it features wide input voltage support from 85 to 264 V AC or 110 to 300 V DC, with protections including overvoltage and short-circuit. Compact, DIN rail mountable, and energy-efficient, it guarantees safety, galvanic isolation, and consistent power delivery in industrial environments. Enhance your control systems with this high-quality supply, available now for quick online ordering.
Order your Siemens Series6EP3310-6SB00-0AY0 power supply today and ensure reliable 5 V/3 A performance for your automation projects.
