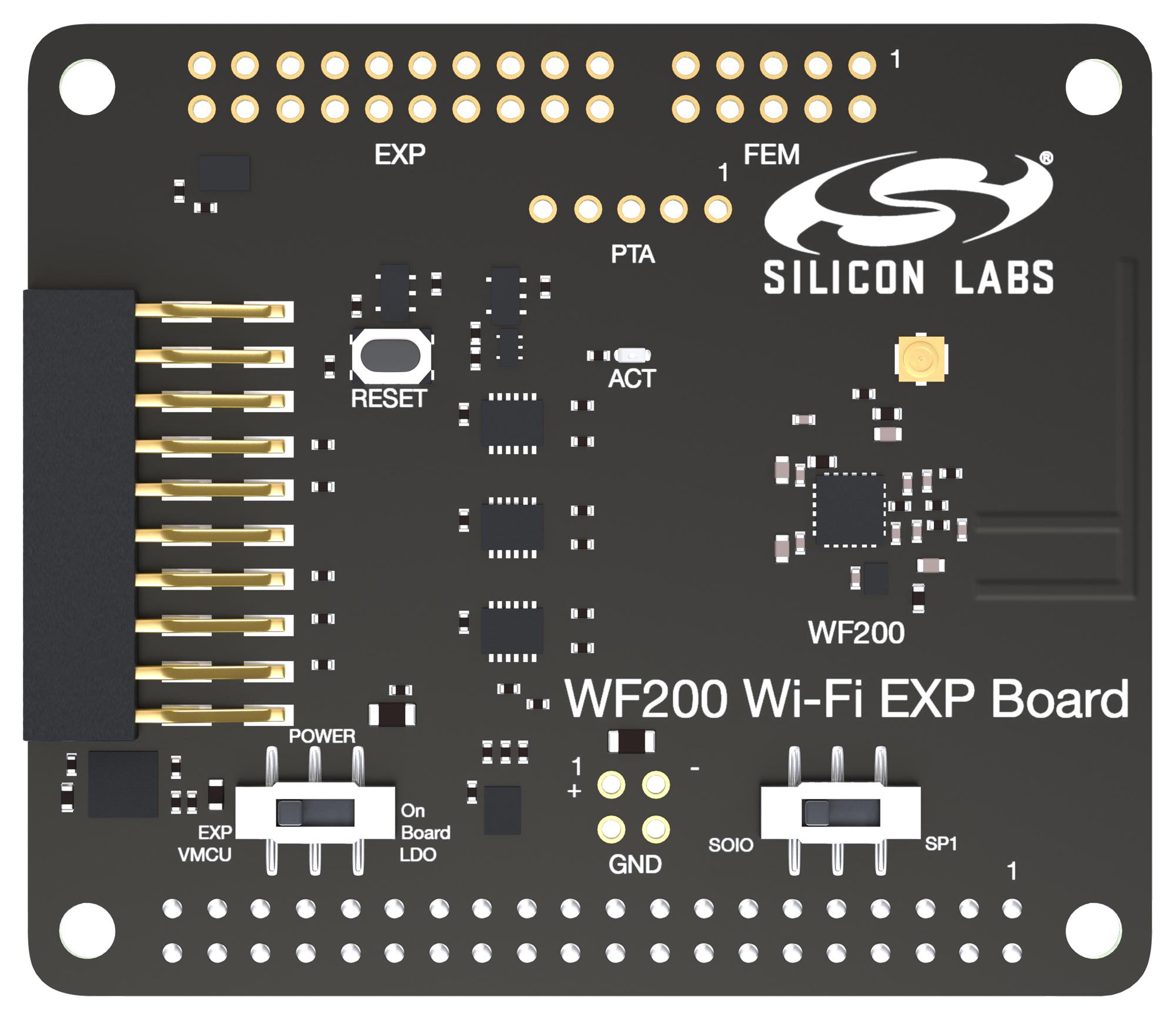

SILICON LABS SLEXP8022A Wi-Fi Module
The WF200 is a low-power Wi-Fi 802.11b/g/n network co-processor designed for RF performance, security, and flexible host control. It integrates an RF front end, Balun, T/R switch, LNA, PA, and supports both split MAC and full MAC architectures for Linux and RTOS hosts. Operating in the 2.4 GHz band, it offers up to 54 Mbps throughput, +17 dBm TX power, and -96.3 dBm RX sensitivity. Its advanced security features include secure boot, encrypted host interface, and hardware acceleration. Compact 4x4 QFN32 package enables versatile deployment in IoT, automation, and consumer applications.
SILICON LABS SLEXP8022A Wi-Fi Module Specifications:
- Frequency Range: 2412-2484 MHz
- Channel Bandwidth: 20 MHz
- TX Power: +17 dBm
- RX Sensitivity: -96.3 dBm
- Antenna Ports: 2x 2.4 GHz, diversity support
- Supported Standards: IEEE 802.11 b/g/n, WPA/WPA2, WMM Power Save
- Security: Secure boot, encrypted interface, OTP key storage, hardware AES/WEP acceleration
- Power Consumption: Rx 41.6 mA, Tx 153 mA, Sleep 22 pA, Standby 66 nA
- Interface: SDIO, SPI, GPIOs
- Package: 4x4 QFN32
- Operating Voltage: 1.62V - 3.6V
- Operating Temp: -40°C to +105°C
- Supports both split MAC and full MAC configurations
- Supports coexistence with other 2.4 GHz radios via PTA interface
- Crystal oscillator: 38.4 MHz, optional external TCXO or internal crystal
Buy the Buy Silicon Labs WF200 Part Number SLEXP8022A Online
Purchase the Silicon Labs WF200 Wi-Fi module online today and harness its advanced RF features, robust security, and low power consumption for IoT, smart home, automation, and industrial applications. Compact and easy to integrate, this module supports 802.11b/g/n standards, dual antennas, and secure firmware options. With flexible host interface options such as SDIO and SPI, it ensures seamless connectivity and reliable performance across various environments. Get your WF200 now and accelerate your product development with trusted silicon technology and professional support.
Order your Silicon Labs WF200 security-enabled Wi-Fi module today and enjoy reliable, low-power wireless connectivity for IoT, automation, and consumer projects.
Frequently Asked Questions
Where can I buy SILICON LABS SLEXP8022A?
You can click on the BUY or RFQ button to purchase SLEXP8022A from an authorized SILICON LABS distributor.
How do I troubleshoot issues or seek technical support for part SLEXP8022A?
You can download the SLEXP8022A datasheet or visit the SILICON LABS website for support.
Who is the manufacturer of SLEXP8022A?
SILICON LABS
