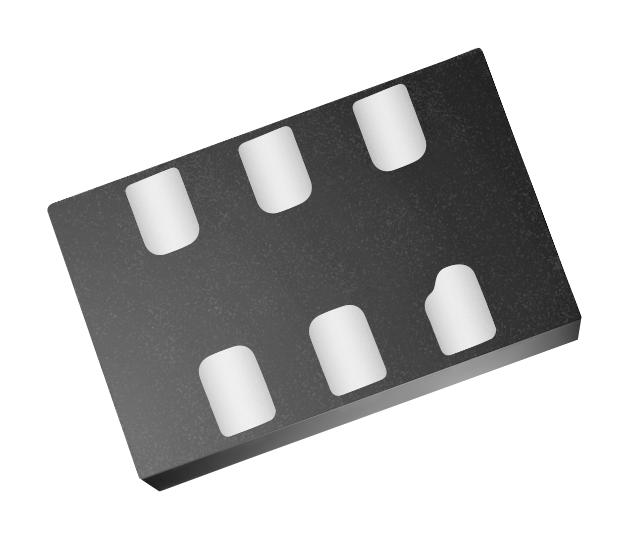

SITIME SIT9365AC2E233E156250000X Differential Oscillator

The SiT9365 is a high-performance, ultra-low jitter differential oscillator supporting 32 standard frequencies from 25 MHz to 322.265625 MHz. It offers LVPECL, LVDS, and HCSL outputs, ideal for Ethernet, SONET, SATA, SAS, and Fibre Channel applications. Wide temperature operation from -40°C to 85°C, stable frequency with ±10 ppm options, and industry-standard packages (3.2x2.5mm, 7.0x5.0mm). It delivers 0.1 ps RMS phase jitter, low power consumption, and robust electrical characteristics, making it suitable for demanding networking, storage, and telecom systems.

Buy SiTime Oscillator Part Number SIT9365AC2E233E156250000X Online
View SIT9365AC2E233E156250000XDatasheet [pdf]
Authorized Distributors
Source:DigiKey
Part No:SIT9365AC-2E2-33E156.250000X
Stock:209
Inv Date:06-16-2026
Price: Unit price: $8.61
Buy/RFQ:

SITIME SIT9365AC2E233E156250000X Differential Oscillator Specifications:

  • Supported frequencies: 25 MHz to 322.265625 MHz
  • Output Signaling: LVPECL, LVDS, HCSL
  • Frequency Stability: ±10 ppm, ±20 ppm, ±25 ppm, or ±50 ppm options
  • Operating Temperature Range: -40°C to 85°C
  • Power Supply: 2.97V to 3.63V
  • Current Consumption: 89 mA, 58 mA (OE disabled)
  • Jitter: RMS phase jitter ~0.2-0.28 ps (at 156.25 MHz)
  • Rise/Fall time: ~225-470 ps
  • Package Sizes: 3.2x2.5mm, 7.0x5.0mm
  • Maximum Junction Temperature: 130°C
  • Soldering Temperature: 260°C
  • Environmental Resistance: MIL-STD-883F compliant for shock and vibration
  • Absolute Max Ratings VDD: -0.5V to 4.0V; Storage Temperature: -65°C to 150°C

Buy the Buy SiTime Oscillator Part Number SIT9365AC2E233E156250000X Online

Order the SiTime SI9365AC2E233E156250000X online today to ensure your systems benefit from precise, low jitter performance across wide temperature ranges. This differential oscillator offers a broad frequency support from 25 MHz to 322.265625 MHz, with configurable stability options of ±10 ppm or ±20 ppm. Suitable for high-speed networking, telecom, and storage applications, it features LVPECL, LVDS, and HCSL outputs, industry-standard packages, and excellent jitter characteristics. Fast shipping, secure purchase options, and technical support ensure seamless integration into your design.

Buy SiTime SIT9365AC2E233E156250000X now and experience unmatched reliability and performance with industry-leading ultra-low jitter oscillator technology.
