SOURIAU-SUNBANK / EATON RM24W3K Heavy-duty Machined Contact

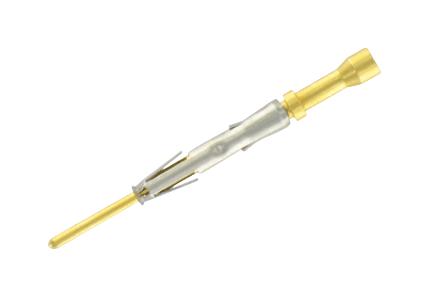

The RM24W3K is a precision-machined crimp contact designed for heavy-duty applications within the TRIM TRIO interconnection system. Made from high conductive copper alloy, it features gold or tin over nickel plating, heat-treated beryllium copper springs for optimal locking and alignment, and a closed entry socket to prevent probe damage. Suitable for wire sizes 24-26 AWG, it supports a maximum current of 13 Amps, operating voltage up to 750 V RMS. Available in bulk packing, the contacts ensure reliable electrical and mechanical performance for industrial and electronic connections.
SOURIAU-SUNBANK / EATON RM24W3K Heavy-duty Machined Contact Specifications:
- Material: High conductive copper alloy
- Plating: Gold or tin over nickel
- Spring Material: Heat-treated, plated beryllium copper
- Wire Size: 24-26 AWG
- Pin Diameter: 1.57 mm (.062")
- Maximum Current: 13 Amp
- Operating Voltage: 750 V RMS
- Contact Resistance: ≤3 mΩ
- Contact Retention Force: ≥110 N
- Insulation Support: Crimp barrels with vibration support
- Temperature Range: Not specified
- Pack Quantity: 50 pcs bulk, 2000 pcs on reel
- Compatible with: TRIM TRIO connectors, MS-M, SMS Qikmate, P143, UT-Bantam, and others
Buy the Industrial Connector 24W3K – Reliable Heavy-Duty Contacts for Industrial Applications
Order RM24W3K machined crimp contacts online to ensure secure, reliable electrical connections for industrial and electronic systems. Designed for high performance, these contacts feature gold or tin plating over copper, heat-treated springs, and a closed entry socket to prevent damage. Suitable for wire sizes 24-26 AWG, supporting up to 13 Amps and 750 V RMS. Available in bulk and reel packaging, they are compatible with multiple TRIM TRIO connectors and suitable for demanding industrial environments. Purchase now for consistent quality and performance.
Get RM24W3K today—built for precision and long-lasting durability in industrial electronic connections.
