SOURIAU-SUNBANK / EATON SMS4RDH1 Quick Mating Connector
The Quick Mate SMS series Qikmate Panel and Cable Connector Housing is made from polyamide 6.6 providing an efficient interconnection system with 16 TRIM TRIO contacts. It supports 10 contact arrangements from 2 to 36 positions, with snap-in panel receptacles and quick connect/disconnect cable plugs featuring positive retention locks. Cable plugs include pin-protection skirts and polarization keys to prevent damage and mismating. Capable of cable-to-cable connections with integrated strain relief hoods, these connectors operate within -55°C to 105°C, meet UL94V-2 flammability standards, and withstand 500 mating cycles for industrial reliability.
SOURIAU-SUNBANK / EATON SMS4RDH1 Quick Mating Connector Specifications:
- Material: Polyamide 6.6
- Flammability rating: UL94 V-2
- Number of positions: 2 to 36
- Contact diameter: 16 TRIM TRIO contacts, 1.6mm
- Contact arrangement: 10 predefined configurations from 2 to 36 positions
- Operating temperature: -55°C to +105°C
- Durability: 500 mating cycles
- Sealing performance: IP40
- Voltage rating: 250V
- Current rating: 10A (max)
- Features: Snap-in panel receptacle, positive retention locks, discrimination cavities, pin-protection skirts, polarization keys, with/without strain relief hoods
- Compatibility: Accepts TRIM TRIO size 16 contacts
- Application: Industrial interconnection systems

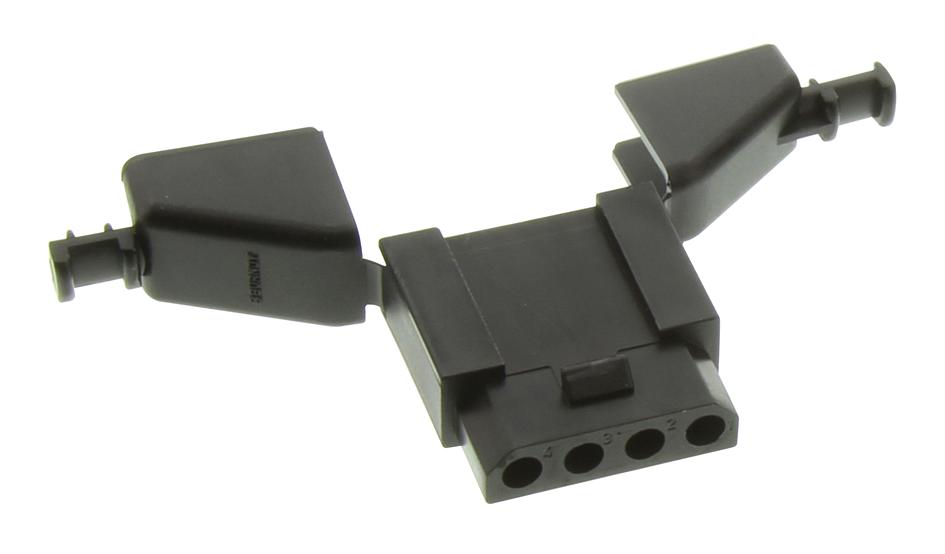

Buy the SOURIAU Series SMS: Quick Mating Cable Receptacle with Strain Relief, Part Number SMS4RDH1
Discover the highly reliable SOURIAU Series SMS quick mating connector, featuring polyamide housing, integrated strain relief, and 16 TRIM TRIO contacts. Designed for industrial use, it provides quick connection and disconnection, with positive polarization, contact protection skirts, and discrimination cavities ensuring proper mating. Suitable for cable-to-cable and panel applications, operating from -55°C to 105°C, and rated for 10A and 250V. Perfect for high-density, high-performance interconnections in demanding environments.
Order your SOURIAU Series SMS SMS4RDH1 quick mating connector with integrated strain relief today and ensure reliable, high-density interconnections for industrial applications.
Frequently Asked Questions
Where can I buy SOURIAU-SUNBANK / EATON SMS4RDH1?
You can click on the BUY or RFQ button to purchase SMS4RDH1 from an authorized SOURIAU-SUNBANK / EATON distributor.
How do I troubleshoot issues or seek technical support for part SMS4RDH1?
You can download the SMS4RDH1 datasheet or visit the SOURIAU-SUNBANK / EATON website for support.
Who is the manufacturer of SMS4RDH1?
SOURIAU-SUNBANK / EATON
