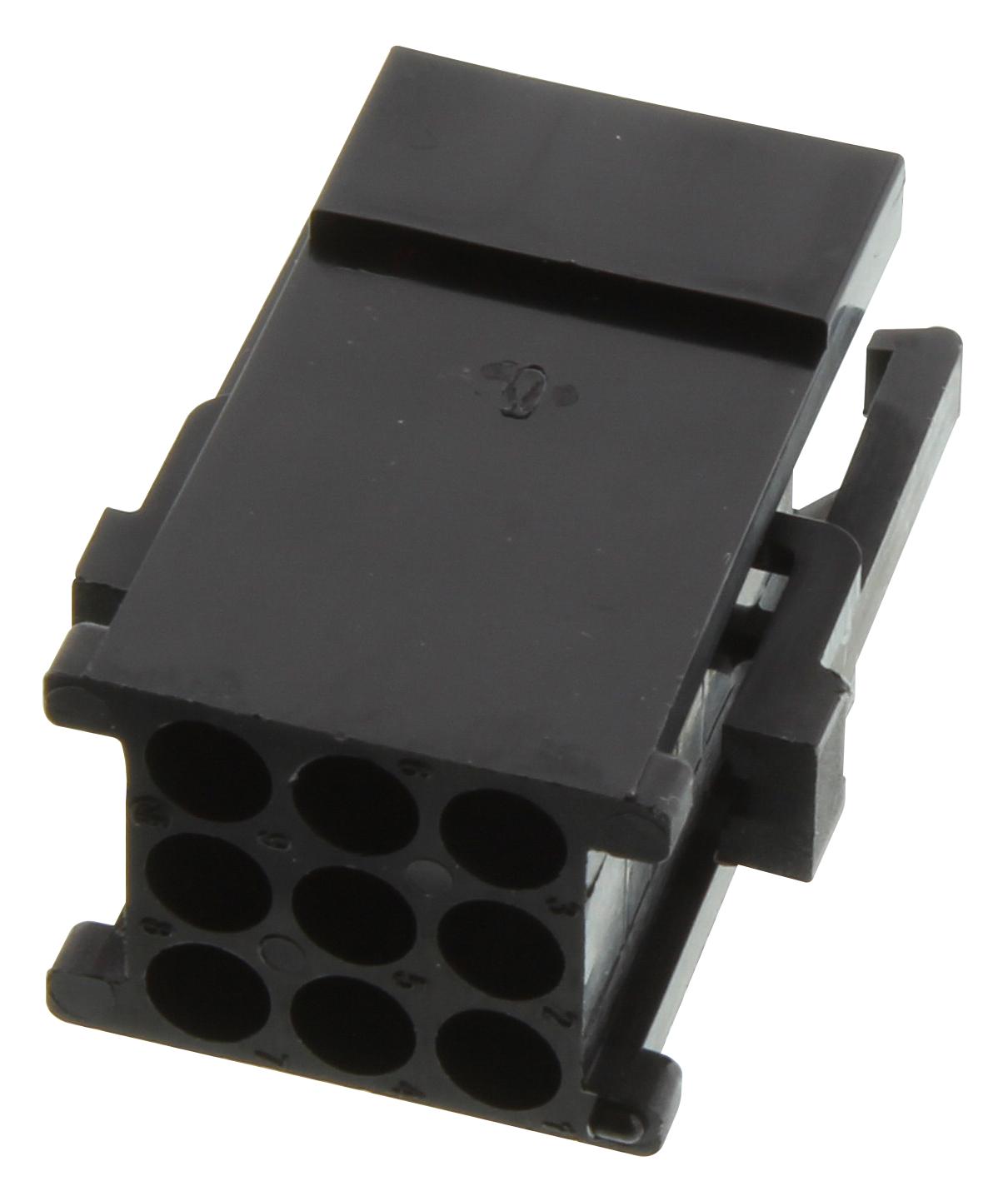

SOURIAU-SUNBANK / EATON SMS9P1 Quick Mating Connector
The Quick Mate SMS series offers versatile, cost-effective interconnection solutions for industrial applications, featuring snap-in panel receptacles and strain relief cable plugs made from durable polyamide 6.6. With N° 16 TRIM TRIO contacts in 2 to 36 positions, these connectors support quick, tool-free mating and un-mating, with positive retention locks. They include pin protection skirts and polarization keys to prevent mismating, with optional integrated strain relief hoods for cable-to-cable connections. Rated for operation from -55°C to 105°C, they are UL94V-2 flame rated, ensuring secure, reliable, and space-efficient interconnections.
SOURIAU-SUNBANK / EATON SMS9P1 Quick Mating Connector Specifications:
- Material: Polyamide 6.6
- Temperature Rating: -55°C to +105°C
- Operating Voltage: 250V
- Current Rating: 10A (cable plug), 10A (receptacle)
- Contact Diameter: 16 TRIM TRIO contacts, 1.6mm
- Number of Positions: 2 to 36
- Sealing: IP40
- Flammability Rating: UL94 V-2
- Durability: Up to 500 mating cycles
- Operating Temperature: -55°C to 105°C
- Discrimination Cavities: Yes, between contact cavities
- Connection Type: Push-to-mate, lockable
- Use: Panel mount and cable-to-cable connections
- Color: Black or White depending on variant
- Compliance: UL94 V-2, EN 45545-2 (HL3), UL 94 VO
Buy the Buy SOURIAU SMS Part Number SMS9P1 Online
Order the SOURIAU SMS9P1 today for high-density, quick-mating connectors with strain relief and discrimination cavities. Designed from durable polyamide 6.6, these connectors provide robust, safe, and space-efficient interconnections suitable for industrial applications. Features include positive locking, pin protection skirts, and optional integrated strain relief hoods for cable-to-cable connections. With a rated temperature of -55°C to 105°C and UL94V-2 flammability compliance, they are ideal for demanding environments, supporting up to 500 mating cycles for long-term reliability.
Get SOURIAU SMS9P1 today—designed for quick, reliable interconnections with integrated strain relief and discriminating features, ensuring secure and space-saving connections.
Frequently Asked Questions
Where can I buy SOURIAU-SUNBANK / EATON SMS9P1?
You can click on the BUY or RFQ button to purchase SMS9P1 from an authorized SOURIAU-SUNBANK / EATON distributor.
How do I troubleshoot issues or seek technical support for part SMS9P1?
You can download the SMS9P1 datasheet or visit the SOURIAU-SUNBANK / EATON website for support.
Who is the manufacturer of SMS9P1?
SOURIAU-SUNBANK / EATON
