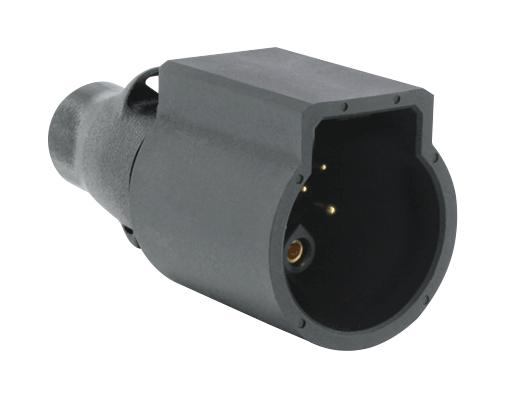

SOURIAU-SUNBANK / EATON UTL1102G1W3PCDMX Sealed industrial connector
The UTL series is a high-performance industrial connector designed for severe environments, with IP68/69K protection, UV resistance, and UL/IEC certifications. It supports multiple layouts, such as straight overmolded cable assemblies with strain relief, and features quick-mate and blind-mate capabilities with audible click confirmation. The connectors are suitable for outdoor and indoor applications, including outdoor controls, electronics, LED lighting, and power distribution. They are compliant with various standards like UL 94 and IEC 61984, ensuring safety, durability, and reliable sealing even under harsh conditions.
SOURIAU-SUNBANK / EATON UTL1102G1W3PCDMX Sealed industrial connector Specifications:
- Protection Level: IP68/69K (Waterproof and dustproof, suitable for outdoor use)
- Material: UL94 V-0 flame-retardant polymers, F1 rated UV resistant
- Operating Temperature: -40°C to +80°C
- Voltage Rating: 600V (UL/IEC compliant)
- Current Rating: Up to 16A depending on contact layout and wire size
- Number of Contacts: 3 + ground, 5, 6, 8 contacts options
- Contact Material: Copper alloy, gold or tin plating options
- Connector Dimensions: Refer to specific shell sizes (10, 12, 14), length varies per assembly type
- Sealing: Overmolded with water ingress barrier, suitable for dynamic and static applications
- Certifications: UL 94 VA, UL 1977, IEC 61984, UL 1682, UL 1684, RoHS, ISO 14001
- Environmental Resistance: UV resistant, salt spray tested, suitable for direct burial
- Assembly Options: Overmolded cable assemblies, with or without strain relief, and ability to seal with heat-shrink boot
- Standards Compliance: IEC 61140, IEC 61984, IEC 60529 (IP code), IEC 60664-1, IEC 61010, IEC 60601, UL 94, UL 1977, UL 1682, UL 1684
- Additional Features: Easy mating with audible click, quick assembly, high durability, suitable for outdoor and industrial environments
Buy the SOURIAU UTL– Reliable Sealed Connectors for Industrial Applications
Secure your industrial power and control connections with SOURIAU UTL sealed connectors. Designed for harsh environments, these IP68/69K rated connectors ensure water, dust, and chemical resistance. Easy to install with quick-mate audible click and robust overmolded construction, they provide long-term reliability in outdoor, underground, and dynamic applications. Certified for UL, IEC, and RoHS standards, they support multiple layouts and configurations to match your specific power and control needs. Order online today for fast delivery and premium performance in your demanding industrial projects.
Buy SOURIAU UTL series connectors now and experience unmatched durability, waterproof sealing, and quick assembly for tough industrial environments.
Frequently Asked Questions
Where can I buy SOURIAU-SUNBANK / EATON UTL1102G1W3PCDMX?
You can click on the BUY or RFQ button to purchase UTL1102G1W3PCDMX from an authorized SOURIAU-SUNBANK / EATON distributor.
How do I troubleshoot issues or seek technical support for part UTL1102G1W3PCDMX?
You can download the UTL1102G1W3PCDMX datasheet or visit the SOURIAU-SUNBANK / EATON website for support.
Who is the manufacturer of UTL1102G1W3PCDMX?
SOURIAU-SUNBANK / EATON
