STANDEXMEDER MK68B Reed Switch
MK68B is a magnetically operated Reed proximity switch designed for PCB mounting applications. It features a form A contact configuration and is suitable for various industrial and domestic switch applications. The sensor operates through magnetic actuation and provides reliable switching with high insulation resistance and low contact resistance. It is ideal for use in telecommunications, appliances, limit switches, elevator position indicators, and other automation systems. Compact and easy to install, MK68B ensures precise detection in tight spaces, maintains long-term stability, and offers excellent electromagnetic compatibility with robust environmental resistance.
STANDEXMEDER MK68B Reed Switch Specifications:
- Contact Form: A
- Switching Power: Max 10 W
- Switching Voltage DC or peak AC: 200 V
- Switching Current DC or peak AC: 0.5 A
- Static Contact Resistance: 150–200 mΩ (at 0.5V & 10mA)
- Dynamic Contact Resistance: 200–250 mΩ (measured at 0.5V & 50mA)
- Insulation Resistance: 10^10 Ω at 100 V
- Breakdown Voltage: 210 VDC (for 60 sec)
- Operate Time: 0.6 ms (with 100% overdrive)
- Reset Time: 0.4 ms
- Capacitance @ 10kHz across contact: 2 pF
- Shock Resistance: 50 g (half sine 11ms)
- Vibration Resistance: 20 g (10-2000 Hz)
- Ambient Temperature Range: -20°C to 85°C
- Storage Temperature Range: -35°C to 85°C
- Soldering Temperature: 260°C (5 sec. dwell)

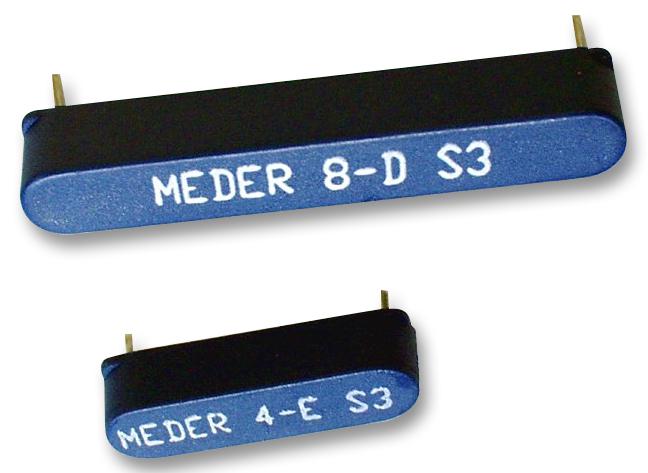

Buy the Meder Series MK68 Magnetically Operated Reed Switch: MK68B
Order the Meder MK68B reed switch online today and benefit from a compact, high-reliability magnetic sensing solution suitable for industrial automation, appliances, limit switches, and elevator position indicators. Designed for PCB mounting, it features quick response times, excellent insulation, low contact resistance, and robust environmental resistance. Ideal for demanding applications requiring precise magnetic field detection with long-term stability. Purchase online now to ensure fast delivery and enjoy reliable performance across diverse electronic and control systems.
Buy Meder MK68B now and experience unmatched reliability and precise magnetic detection in PCB mounting applications.
Frequently Asked Questions
Where can I buy STANDEXMEDER MK68B?
You can click on the BUY or RFQ button to purchase MK68B from an authorized STANDEXMEDER distributor.
How do I troubleshoot issues or seek technical support for part MK68B?
You can download the MK68B datasheet or visit the STANDEXMEDER website for support.
Who is the manufacturer of MK68B?
STANDEXMEDER
