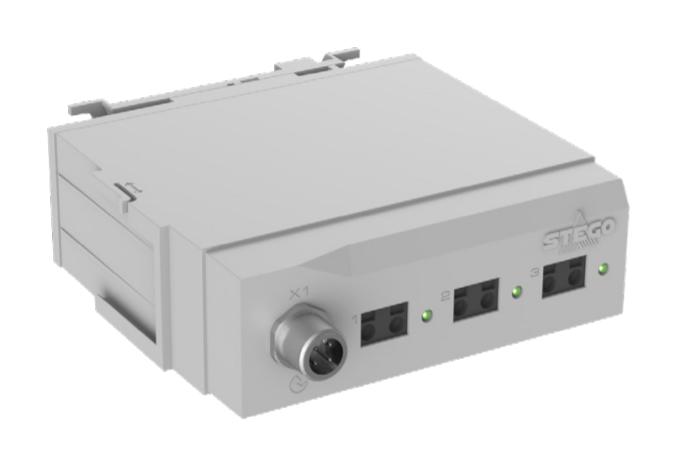

STEGO 07200200 Actuator Hub
The 10-Link Actuator Hub AHC 072 is a versatile device that switches up to three actuators or loads using relays. It receives switching commands via the IO-Link interface from higher-level controllers like PLCs, cloud, or edge computers. Compatible with both AC and DC loads, it supports integration of analog devices such as heaters or fans into digital networks. With a robust design, multiple mounting options, and protection features, it’s ideal for building a reliable IoT system within industrial automation setups, supporting maximum temperatures up to 70°C.
STEGO 07200200 Actuator Hub Specifications:
- Max. switching capacity AC 240 V, 10 A
- Max. inrush current AC 10 A for 10 sec.
- Actuator connection: Push-In terminals (3 x)
- IO-Link connection: M12 round plug connector, 4-pin, A-coded
- Electrical protection: Reverse-polarity, short circuit, overvoltage protection
- Casing: Plastic, UL94V-0, light grey
- Dimensions: 107 x 35 x 108 mm (116 mm with universal mounting bracket)
- Weight: approx. 160 g
- Operating temperature: -40 to +70 °C (with 2 loads) and -40 to +40 °C (with 3 loads)
- Storage temperature: -40 to +85 °C
- Operating humidity: Max. 90% RH (non-condensing)
- Mounting: DIN rail or screw mounting (M5)
- Protection: IP40, class II
- Certificates: UL, CSA, evaluated per IEC 61010-1
Buy the Buy Erie Maca Actuator Hub Part Number 07200200 Online
Secure your Erie Maca actuator hub online today and benefit from quick delivery and exceptional support. This 10-Link actuator hub seamlessly integrates up to three loads with digital control via IO-Link, making it perfect for industrial automation systems. Designed for reliable operation, it features overload and reverse polarity protection, supporting AC and DC loads. Its compact size and flexible mounting options allow easy installation on DIN rails or with screws. Ensure your process control setup is efficient and scalable by purchasing this versatile, high-quality actuator hub now.
Order your Erie Maca Series AHC 072 actuator hub today and enhance your industrial automation projects with reliable relay switching and IO-Link connectivity.
